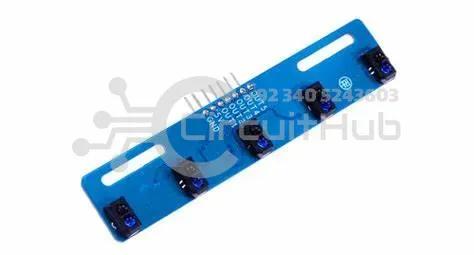

5 Way IR Line Tracking / Following TCRT5000 Sensor Module

5 Way IR Line Tracking / Following TCRT5000 Sensor Module (TCRT5000L) is a high-precision 5-channel infrared tracking module. Perfect for Arduino, AVR, ARM, and PIC projects, it is commonly used to build smart line-following cars and grid-navigating robots. The module uses infrared emitting diodes that emit rays continuously, which are reflected by objects and detected by infrared receivers. Analogue output values indicate object distance and color, allowing precise line tracking.

Key Features of TCRT5000 5-Way Tracking Sensor Module

• Compatible with Arduino, AVR, ARM, and PIC microcontrollers
• High-quality tracking sensor for accurate performance
• Equipped with 8 IR emitter and receiver pairs evenly spaced
• Distance between each IR sensor: 15mm for optimal resolution
• 5 sensors provide precise line detection
• Ideal for fast line-following and grid navigation robots
• Digital outputs for direct microcontroller connection
• 3mm diameter mounting holes for easy installation
• Status LED on each sensor for black line detection

Connection Details

• VCC: Power input (3.3V ~ 5V)
• GND: Ground connection
• OUT1 ~ OUT5: Digital signal outputs connected to MCU I/O ports

Package Includes

• 1 x TCRT5000L 5-Channel Tracking Sensor Module (5-way reflective optical sensors)
• On-board hex inverter for clean digital output
• Highly sensitive to dark colors and infrared
• Operating Voltage: 5V (recommended)
• M3 flexible mounting slots for easy installation
