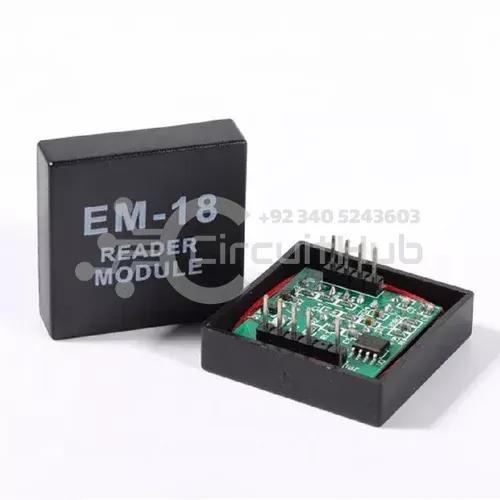

EM18 – 125Khz RFID Reader Module

EM-18 is a nine pin device. Among nine pins, 2 pins are not connected, so we basically have to consider seven terminals.

VCC - Should be connected to positive of power source.
GND - Should be connected to ground.
BUZZ - Should be connected to BUZZER
NC - No Connection
SEL - SEL=1 then o/p = RS232, SEL=0 then o/p = WEIGAND
TXDATA - Data is given out through TX of RS232
DATA1 - WEIGAND interface DATA HIGH pin
DATA0 - WEIGAND interface DATA LOW pin

PKR 1600/-

CATEGORY:Development Boards & Kits, Modules & Breakout Boards

Product Description

The EM18 RFID Reader Module is your gateway to seamless 125khz RFID card reading. Whether you’re building an access control system, inventory management solution, or attendance tracking application, this module delivers reliable performance. Here’s why you’ll love it.

Key Features:

Compact Design: The EM18 module is small and easy to integrate into your projects.
125kHz Read Frequency: It operates at the widely used 125kHz frequency, making it compatible with a variety of RFID tags.
EM4001 Tag Compatible: Works seamlessly with EM4001 64-bit RFID tags.
TTL and RS232 Output: Choose the output mode that suits your application.
Magnetic Stripe Emulation: Emulates magnetic stripe data output for added versatility.
Wide Read Range: Detects RFID cards within a 100mm range.

Why Choose EM18?

Affordable: Get started with RFID technology without breaking the bank.
Easy Integration: The 2.54mm pin spacing allows direct fitting on a breadboard.
Versatile Applications: Access control, attendance systems, inventory tracking, and more.
