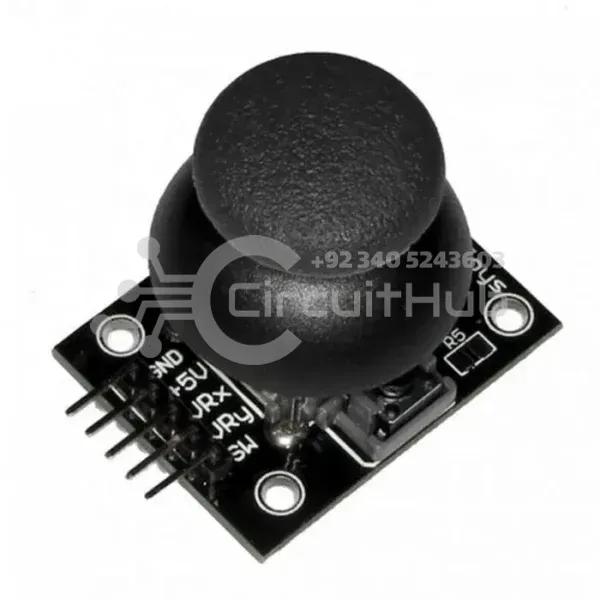

Joystick Module 2 Axis Dual Axis

The Arduino Joystick Module is a versatile and easy-to-use input device widely used in robotics, game controllers, and DIY electronics projects. It provides precise analog output signals corresponding to the movement of the joystick knob in both X and Y directions. This module is ideal for controlling motors, servos, and other interactive components in your Arduino-based applications. With a simple interface and smooth operation, it’s a must-have for any hobbyist or electronics enthusiast looking to enhance control and motion in their projects.

How the Arduino Joystick Module Works

The module contains two internal 10kΩ potentiometers that measure movement along the X and Y axes. When the joystick is moved, it changes the resistance, producing variable analog voltage signals. These signals are read by Arduino’s analog input pins (VRx and VRy), allowing you to detect direction and intensity of movement. Additionally, pressing down on the joystick knob activates a built-in momentary switch (SW pin), which can be used for additional control functions such as selection or reset.

Pin Configuration of Joystick Module

• Pin 1 (GND): Ground terminal of the module
• Pin 2 (+5V): Positive voltage supply terminal
• Pin 3 (VRx): Provides voltage proportional to X-axis movement
• Pin 4 (VRy): Provides voltage proportional to Y-axis movement
• Pin 5 (SW): Digital switch output – pressed when joystick is clicked

Features and Technical Specifications

• Operating Voltage: 5V DC
• Internal Potentiometer Value: 10kΩ
• Pin Interface: Standard 2.54mm pitch connectors
• Dimensions: 4.0 cm x 2.6 cm x 3.2 cm (1.57 in x 1.02 in x 1.26 in)
• Operating Temperature: 0°C to 70°C
• Dual Independent Potentiometers: For X and Y-axis motion sensing
• Auto-return Function: Joystick returns to center when released
• Durable Cup-type Knob: Ensures comfortable handling and precise movement
• Compatibility: Works perfectly with Arduino, ESP32, ESP8266, Raspberry Pi, and other microcontrollers

Applications

• Robotics and remote-controlled vehicles
• DIY game controllers and automation systems
• Servo motor and robotic arm control
• Mechatronics and embedded systems projects
• Analog input devices for Arduino learning kits

Package Includes

• 1 x Arduino Joystick Module Version 1.0.0
