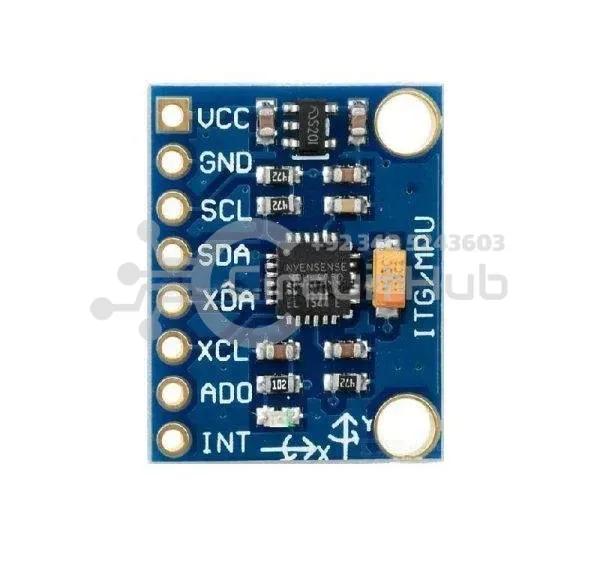

MPU6050 GY-521 6DOF 3 Axis Analog Gyro Sensor + 3 Axis Accelerometer Module

MPU6050 GY-521 6DOF 3 Axis Analog Gyro Sensor + 3 Axis Accelerometer Module for Arduino

Overview:

The Three Axis Acceleration + Gyro Breakout (MPU-6050) is a great motion processing module. By combining a MEMS 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor™ (DMP™) capable of processing complex 9-axis Motion Fusion algorithms, the MPU-6050 does away with the cross-axis alignment problems that can creep up on discrete parts.

Features:

• On-board MPU – 6050 integrated 6 axis motion processing chip
• On-board LDO chip, support 5 V / 3.3 V voltage input
• Commonly used pin have been brought out with a standard 2.54mm spacing
• Module support IIC standard communication protocol
• Users can control program of the accelerator full grid sensor in the range of ±2g, ±4g, ±8g and ±16g
• Angular velocity full case sensing range for ±250, ±500, ±1000, and ±2000dps
• Digital Motion Processing™ (DMP™) engine offloads complex Motion Fusion, sensor timing synchronization and gesture detection
• Embedded algorithms for run-time bias and compass calibration. No user intervention required
• On-chip ADC & temperature sensor to measure the MPU-60X0 die temperature

Package Includes:

• 1 x MPU-6050 Module
• 1 x Burg connector Pins (Right angle)
• 1 x Burg connector Pins (Straight)

Interfacing with Arduino:

How to interface MPU6050 gyro + accelerometer sensor module with Arduino

Pinouts of MPU6050: 1 x MPU-6050 Module 1 x Burg connector Pins (Right angle) 1 x Burg connector Pins (Straight).
