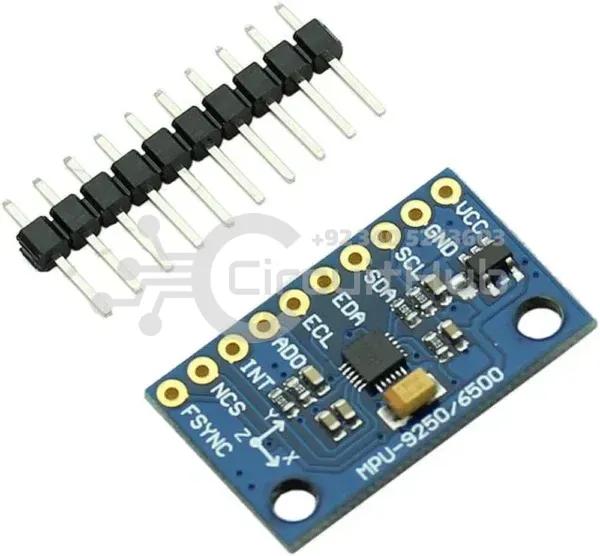

MPU9250 GY-9250 9-AXIS 9DOF Accelerometer, Gyroscope, Digital Motion Processor Sensor Module

The MPU9250 9-Axis Attitude Gyroscope Sensor Module features the MPU9250, a multi-chip module (MCM) combining two dies in a single QFN package. One die includes the 3-axis gyroscope and the 3-axis accelerometer, making the MPU-9250 a 9-axis Digital Motion Processor Sensor that integrates a 3-axis gyroscope, 3-axis accelerometer, and a built-in Digital Motion Processor (DMP).

Key Features of MPU9250 Gyroscope Sensor

• 3-Axis Gyroscope and 3-Axis Accelerometer
• 9 Degrees of Freedom (9 DOF) module
• Built-in ultra-low noise linear LDO voltage regulator
• Onboard filters reduce noise from motors and high-current electronics

Applications of MPU9250 Digital Motion Processor Sensor

• FPV, RC, and robotic systems
• GPS navigation systems
• Impact recognition and logging
• Gaming and virtual reality input devices
• Motion-activated functions
• Intelligent power-saving for handheld devices
• Vibration monitoring and compensation
• Free-fall detection

Technical Specifications of MPU9250 Sensor

• Three 16-bit ADCs for digitizing gyroscope outputs
• Three 16-bit ADCs for digitizing accelerometer outputs
• Three 16-bit ADCs for digitizing magnetometer outputs
• Gyroscope full-scale range: ±250, ±500, ±1000, ±2000°/sec
• Accelerometer full-scale range: ±2g, ±4g, ±8g, ±16g
• Magnetometer full-scale range: ±4800μT
• I2C and SPI serial interfaces
• Power supply: 3-5V

Package Includes

• 1 x GY-9255 MPU9250 Gyroscope Sensor Module
• 1 x Jumper Header (Unsoldered)

We also offer a module with the same driver chips, plus an additional BMP180 barometer chip, providing 10 degrees of freedom.
