PWM to Voltage Converter Module 0-100% to 0-10V for PLC MCU Digital to Analog Signal

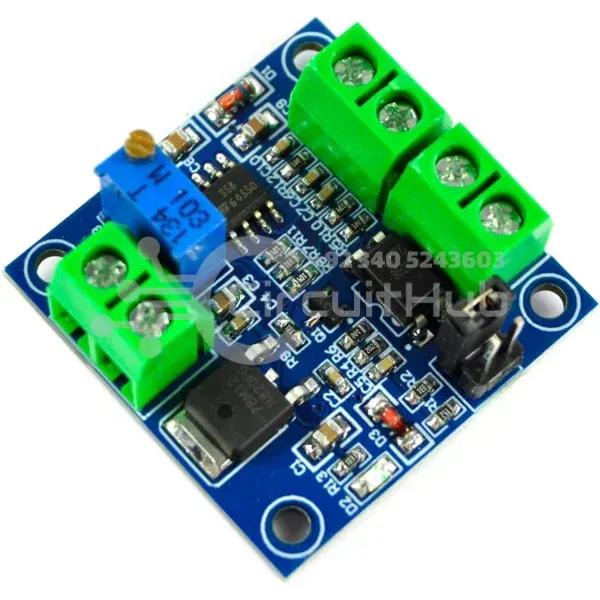

The PWM to voltage converter module LC-LM358-PWM2V is designed to convert digital signals and analog signals by transforming PWM inputs into 0-10V analog outputs. Perfect for PLC MCU applications, this module enables precise digital to analog signal conversion for industrial and electronic projects.

Features of pwm to voltage converter

• MCU embedded technology for accurate signal processing
• Easy operation with fine-tuning via potentiometer
• Selectable PWM input level range through short-circuit configuration

Parameters of pwm to voltage converter

• Work Voltage: DC 12V-30V (>100mA)
• PWM Receiver Frequency: 1kHz – 3kHz
• PWM Signal Input Level Range:
  • 4.5V – 10V: Install short cap in ‘5V’ for normal controllers or 5V MCU
  • 12V – 24V: Install short cap in ‘24V’ for standard PLC controllers
• Conversion Range: 0%-100% PWM to 0-10V
• Allowable Error: ±5%
• Pin Definition:
  • VCC – Working power 12-30V
  • GND – Ground
  • PWM – Input PWM signal positive
  • GND – Input voltage ground
  • VOUT – Output voltage 0-10V
  • GND – Output ground

Applications

• Convert PWM signals to analog voltage for PLC MCU control
• Industrial automation and motor speed control
• Digital to analog signal conversion for sensors and instrumentation
• Educational projects and electronic prototyping

Upgrade your control systems with this reliable PWM to voltage converter module. Perfect for converting digital signals and analog signals in industrial, hobby, and educational projects. Available at competitive PLC price in Pakistan, get yours today and simplify digital to analog signal conversion for your PLC MCU applications!
