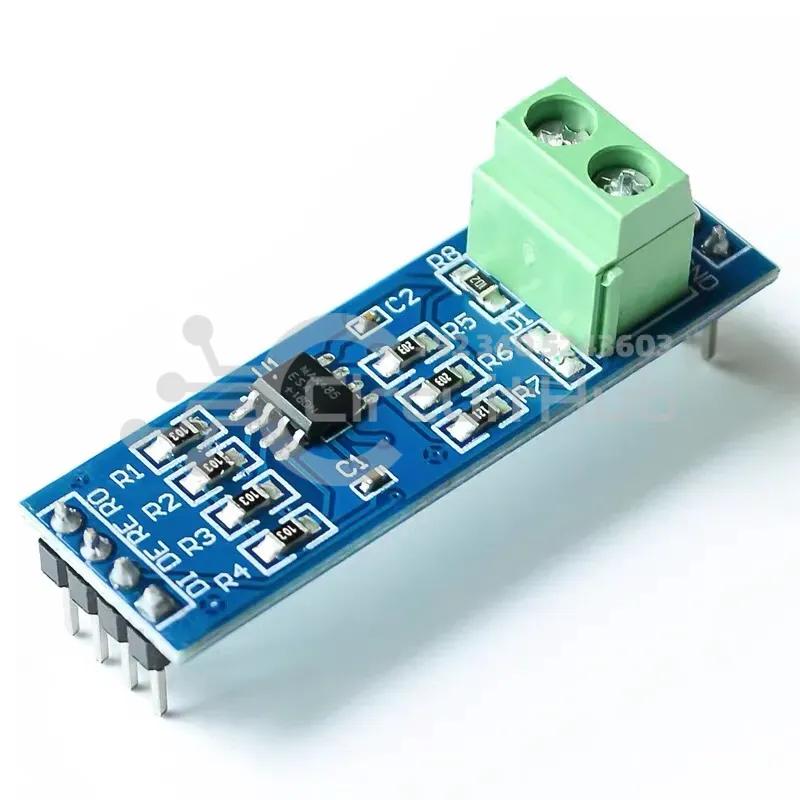

RS485 to TTL UART Converter Module

The RS485 to TTL / TTL to RS485 Converter Module is a must-have for engineers, hobbyists, and professionals looking to enhance their microcontroller projects with reliable, long-distance communication. This versatile module enables seamless communication between a microcontroller's TTL interface and an RS485/MAX485 module, ensuring your data transfers are fast, accurate, and stable. Designed specifically for industrial automation, IoT systems, and complex electronics setups, it features lightning protection and an anti-interference design for maximum durability and safety. Simply connect the GND to the ground for enhanced reliability and consistent performance, making it perfect for both professional and DIY applications.

Key Features of RS485 to TTL Module:

• Standard 2.54 mm pitch design for easy integration into development and prototype projects
• 120Ω termination resistor (short R0 for long-distance transmission)
• Supports multiple microcontrollers on a single bus – up to 128 devices
• Hot-swappable design with large copper areas to minimize signal interference
• Fully compatible with both 3.3V and 5V power supply and signal levels
• Wide operating temperature range: -40°C to +85°C
• Transmission distance up to 800 meters (with 2*1.5mm cable; repeaters recommended for longer distances)
• Semi-hole process PCB, 0.8mm thick, suitable for combo boards or soldered terminals
• LED indicators for RXD and TXD to monitor data transmission in real-time
• Compact, durable design for reliable use in harsh industrial environments
• Low power consumption, making it suitable for battery-powered or energy-sensitive projects

Typical Applications:

• Industrial automation systems and smart factory solutions
• Long-distance RS485 data communication and monitoring projects
• Multi-controller networks for data acquisition and control
• IoT devices and embedded systems requiring reliable signal transmission
• Robotics, smart meters, and other remote control applications

Why Choose This RS485 to TTL Converter?

This module is engineered for reliability, efficiency, and versatility. Whether you are a professional engineer, a maker, or a student working on embedded systems, it provides a dependable solution for communication challenges. Its robust design ensures consistent performance even in electrically noisy environments.

Upgrade your electronics projects today with this RS485 to TTL / TTL to RS485 Converter Module and experience hassle-free, long-distance data transmission. Perfect for industrial, IoT, and DIY applications — get yours now and ensure your devices communicate flawlessly!
