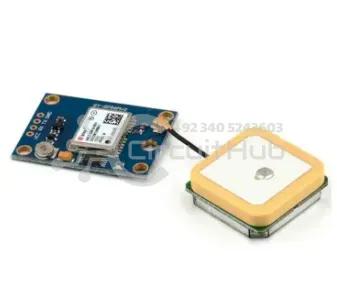

UBLOX NEO-6M V2 GPS MODULE

This is a complete GPS module based on the high-performance Ublox NEO-6M engine, designed to provide precise positioning and reliable navigation for your Ardupilot, multirotor, or other microcontroller projects.

Features

• High-performance U-blox 6 positioning engine
• 25 x 25 mm active GPS antenna
• UART TTL interface for easy connection
• Supports Ardupilot Mega V2 and other multirotor control platforms
• High precision binary output and sensitivity for indoor applications
• Backup battery and EEPROM for configuration retention

Compatibility

• Operates from 3.3V to 5V systems
• Compatible with 5V Arduino boards and 3.3V controllers like Arduino and Raspberry Pi
• Note: Not compatible with APM 2.8 flight controller

Additional Information

• Connected to the antenna via a U.FL cable
• Serial TTL output with TX, RX, VCC, and GND pins
• Includes u-center software for configuration

Specifications

• 5Hz position update rate
• Operating temperature: -40°C to 85°C
• EEPROM for saving configuration settings
• Rechargeable backup battery
• Cold start: 38s, Hot start: 1s
• Supply voltage: 3.3V–5V
• Configurable baud rates: 4800–115200 (default 9600)
• SuperSense Indoor GPS: -162 dBm tracking sensitivity
• Supports SBAS (WAAS, EGNOS, MSAS, GAGAN)
• Separated 18x18 mm ceramic GPS antenna
• LED signal indicator
• Module size: 25 x 35 mm, Mounting hole: 3 mm

Power Supply Range: 3V to 5V

Package Includes

• 1 x Ublox NEO-6M GPS Module
• 1 x Detachable 25 x 25 mm GPS Antenna
