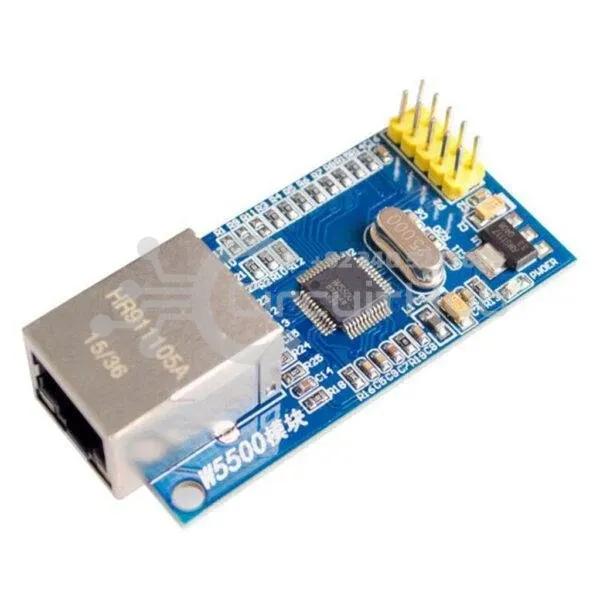

W5500 SPI to Ethernet LAN Network Module
In StockAll over PakistanGuaranteedGuaranteed

W5500 SPI to Ethernet LAN Network Module

The Ethernet module for Arduino and compatible boards based on the Wiznet W5500 chip, faster than the previous W5100. It provides an easy way to connect your module to the local network and internet based WIZNET with a TCP/IP interface. Compatible with libraries with the same Ethernet API. A web server can be built with this shield. It can be used as a server or as a client.

PKR 850/-

1
CATEGORY:Modules & Breakout Boards

Product Description

The W5500 chip is a Hardwired TCP/IP embedded Ethernet controller that provides easier Internet connection to embedded systems. W5500 enables users to have the Internet connectivity in their applications just by using the single chip in which TCP/IP stack, 10/100 Ethernet MAC and PHY embedded.

Features:

  • Controller: Wiznet W5500
  • RJ-45 port
  • Supports wired TCP/IP protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • It supports up to 8 simultaneous connections so it is suitable for use in different SCM systems

Specifications:

  • Compatible with all Arduino versions: UNO, mega 1280/2560
  • Transmission rate: 10/100 MBPS
  • Power supply: 3.3 V or 5 V
  • Communication: SPI
  • Supports 8 independent plugs simultaneously
Applications:
  • Home Network Devices: Set-Top Boxes, PVRs, Digital Media Adapters
  • Serial-to-Ethernet: Access Controls, LED displays, Wireless AP relays, etc.
  • Parallel-to-Ethernet: POS / Mini Printers, Copiers
  • USB-to-Ethernet: Storage Devices, Network Printers
  • GPIO-to-Ethernet: Home Network Sensors
  • Security Systems: DVRs, Network Cameras, Kiosks
  • Factory and Building Automation
  • Medical Monitoring Equipment
  • Embedded Servers

Package Includes:

  • 1 x W5500 SPI to Ethernet Network Module
