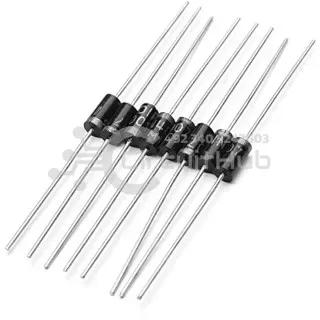

1N4007 Rectifier Diode

The 1N4007 Diode is one of the most popular and reliable general-purpose rectifier diodes used in electronics. It’s designed to handle high reverse voltage and moderate forward current, making it ideal for AC to DC conversion, power supply rectification, and reverse polarity protection in a wide range of electronic circuits. Due to its robust construction and affordability, the 1N4007 is widely used by engineers, students, and hobbyists in power electronics, chargers, adapters, and embedded systems.

1N4007 Diode Polarity and Pinout

The 1N4007 diode has two terminals: an anode (+) and a cathode (–). The cathode is marked with a silver or white band on the diode body for easy identification. Current flows only in one direction—from the anode to the cathode—allowing the diode to act as a one-way valve for electrical current. This property makes the 1N4007 diode ideal for rectifier bridge circuits, where four diodes are connected to convert AC (alternating current) into DC (direct current). Correct polarity ensures proper circuit operation and prevents damage to electronic components.

1N4007 Diode Specifications

• Maximum Repetitive Peak Reverse Voltage (VRRM): 1000V
• Average Forward Current (IF): 1A continuous
• Maximum Surge Current (IFSM): 30A (non-repetitive peak)
• Forward Voltage Drop (VF): 1.1V at 1A DC
• Typical Junction Capacitance (CJ): 15pF
• Reverse Recovery Time (trr): 30µs typical
• Package Type: DO-41 (Axial Lead)
• Operating Temperature Range: –65°C to +175°C
• Weight: 0.33 grams (approx.)

These 1N4007 diode specifications make it a perfect component for applications requiring reliable rectification, voltage blocking, and surge protection. It is a staple in power adapters, battery chargers, DC power supplies, LED drivers, and many other low-frequency rectifying circuits.

Applications of 1N4007 Diode

• AC to DC conversion in power supply circuits
• Reverse polarity protection for electronic devices
• Current blocking in low-frequency rectifiers
• Voltage regulation and surge suppression
• Used in adapters, chargers, and power regulators
• Bridge rectifier configurations in DC power circuits

Advantages of Using 1N4007 Diode

• High reverse voltage capacity (up to 1000V)
• Reliable performance under continuous load
• Compact DO-41 package suitable for breadboard and PCB use
• Low cost and easily available for general-purpose circuits
• Excellent for educational, prototyping, and repair applications

Why Buy 1N4007 Diode from Circuithub PK?

• Authentic and high-quality 1N4007 diodes sourced from trusted manufacturers
• Affordable prices and bulk quantity options
• Fast nationwide delivery across Pakistan
• Secure checkout and customer satisfaction guarantee
• Perfect for students, DIY enthusiasts, and professionals alike

Order Now: Get your 1N4007 Rectifier Diode from Circuithub PK — Pakistan’s trusted online store for electronic components and semiconductors.
