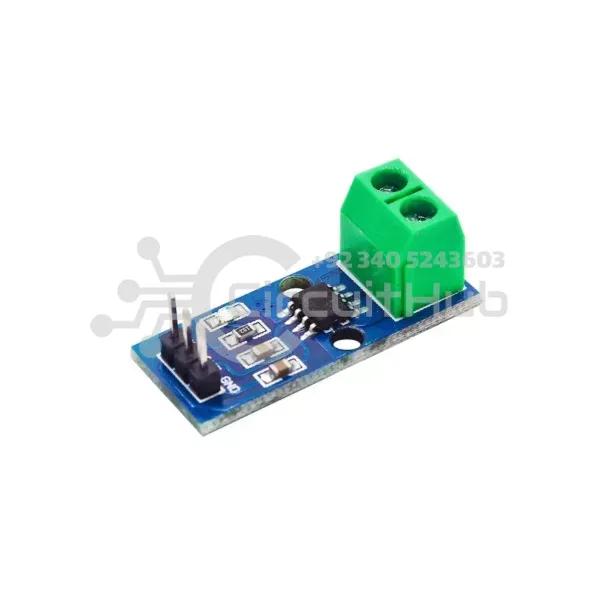

GuaranteedACS712 5A 5 Amp Current Sensor Module
Buy the ACS712 5A Current Sensor Module for accurate AC/DC current measurement. Ideal for Arduino, ESP32, and Raspberry Pi projects in Pakistan.
PKR 416/-
Product Description
Buy the ACS712 5A Current Sensor Module online in Pakistan – a reliable and accurate sensor for measuring both AC and DC current up to 5A. Perfect for Arduino, ESP32, Raspberry Pi, and DIY electronics projects, this module outputs an analog voltage proportional to the current, allowing safe and precise current monitoring for your embedded systems and automation setups.
Key Features:
- Accurately measures current up to 5A (also available in 20A and 30A variants)
- Provides analog voltage output proportional to current for easy MCU integration
- Electrical isolation ensures user and circuit safety during measurement
- Fully compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers
- Features Phoenix terminal connectors with mounting screws for stable wiring
- Compact, lightweight, and ideal for DIY, robotics, and IoT projects
Pin Configuration:
| Pin No. | Pin Name | Description |
|---|---|---|
| 1 | Vcc | +5V input to power the module |
| 2 | Output | Analog voltage proportional to the current |
| 3 | Ground | Connect to system ground |
| T1 | Wire In | Input side for current measurement |
| T2 | Wire Out | Output side to load (supports both AC and DC) |
How to Use the ACS712 Current Sensor Module:
To measure current, connect the sensor module in series with your load. Supply +5V to Vcc, connect Ground to your microcontroller’s ground, and read the analog output pin using an analog input. The module provides high accuracy and electrical isolation, ensuring safe and stable current measurement in real-time.
Scale Factor:
- 5A Module: 185 mV/Amp
- 20A Module: 100 mV/Amp
- 30A Module: 66 mV/Amp
Applications:
- DC and AC current measurement for motors, power supplies, and batteries
- Energy monitoring and power consumption tracking
- Compatible with Arduino, ESP32, Raspberry Pi, and other MCU platforms
- Use in DIY electronics, robotics, IoT, and automation systems
Shop now for the ACS712 5A Current Sensor Module in Pakistan from Circuithub PK – your trusted online store for Arduino sensors, modules, and components at the best prices!
