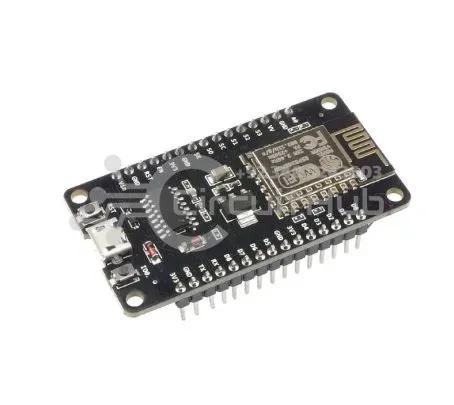

NodeMCU Lolin V3 ESP8266 WiFi Microcontroller Module

NodeMCU Lolin V3 ESP8266 WiFi Microcontroller Development Board Module

Features:

• 4MB of flash memory
• 80MHz of system clock
• Around 50k of usable RAM
• On chip Wifi Transceiver

NodeMCU V3 is an open-source firmware and development kit that plays a vital role in designing your own IoT product using a few Lua script lines.

GPIO Pins:

Multiple GPIO pins on the board allow you to connect the board with other peripherals and are capable of generating PWM, I2C, SPI, and UART serial communications.

Interface:

The interface of the module is mainly divided into two parts including both Firmware and Hardware where former runs on the ESP8266 Wi-Fi SoC and later is based on the ESP-12 module.

Firmware:

The firmware is based on Lua – A scripting language that is easy to learn, giving a simple programming environment layered with a fast scripting language that connects you with a well-known developer community.

Open Source Firmware:

Open source firmware gives you the flexibility to edit, modify and rebuilt the existing module and keep changing the entire interface until you succeed in optimizing the module as per your requirements.

USB to UART Converter:

USB to UART converter is added on the module that helps in converting USB data to UART data which mainly understands the language of serial communication.

MicroUSB Port:

Instead of the regular USB port, MicroUSB port is included in the module that connects it with the computer for dual purposes: programming and powering up the board.

Status LED:

The board incorporates status LED that blinks and turns off immediately, giving you the current status of the module if it is running properly when connected with the computer.

WiFi Connectivity:

The ability of module to establish a flawless WiFi connection between two channels makes it an ideal choice for incorporating it with other embedded devices like Raspberry Pi.

NodeMCU V3 Pinout:

• Vin: Regulated voltage that may stand somewhere between 7 to 12 V
• VU: Power voltage for USB that must be kept around 5 V

Package Includes: 1 x ESP8266 Lolin CH340 Wifi Board with Pre-soldered pins USB to UART converter is added on the module that helps in converting USB data to UART data which mainly understands the language of serial communication.
