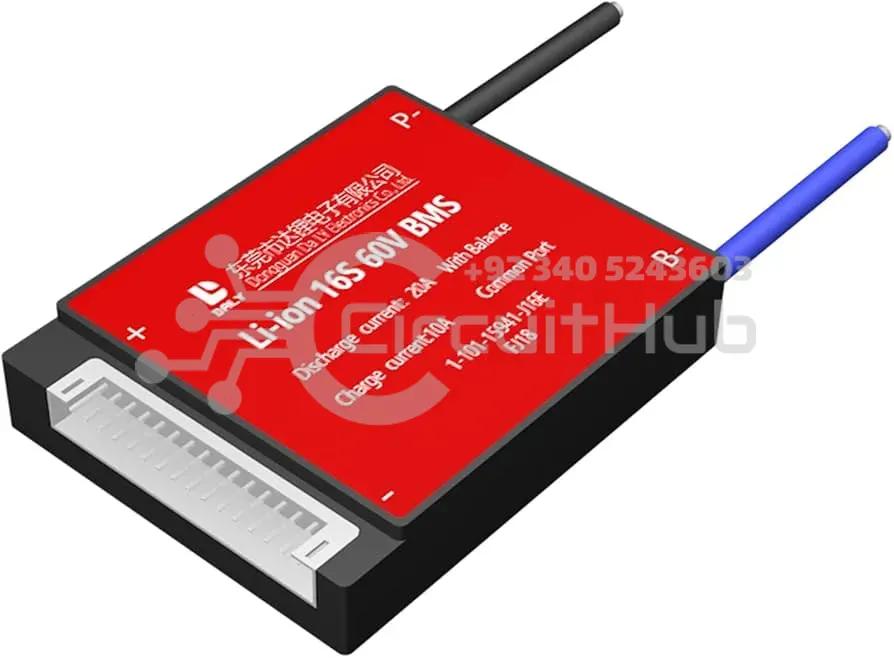

DALY BMS Li-ion 16S 60V 20A BMS Battery Management System for 18650 Battery Pack Balanced Charging Board

The DALY BMS 16S 60V 20A Lithium-ion Battery Management System is a premium protection board designed for 16-series (16S) 60V Li-ion battery packs. Engineered for safety, efficiency, and long-term reliability, it continuously monitors individual cell voltages, charging, discharging, current flow, and temperature to protect your battery pack from common electrical faults. It is compatible with 18650, 21700, 26650, 32700, and prismatic lithium-ion cells, making it an excellent choice for DIY battery packs and commercial energy storage applications.

Featuring intelligent battery protection and passive balancing, the DALY BMS helps maximize battery life, improve charging efficiency, and maintain consistent performance. Whether you're building an electric bike battery, solar storage system, electric scooter, or backup power solution, this BMS provides dependable protection for every charge and discharge cycle.

Key Features

• Designed for 16S (60V) Lithium-ion battery packs.
• Continuous discharge current of 20A.
• Supports 18650, 21700, 26650, 32700, and prismatic Li-ion cells.
• Built-in passive cell balancing for improved battery lifespan.
• High-precision voltage monitoring for every individual cell.
• Reliable protection against overcharge, over-discharge, overcurrent, and short circuits.
• Integrated temperature monitoring for safer battery operation.
• Low standby power consumption to reduce battery drain.
• Compact PCB with moisture-resistant protective coating.
• Easy installation using the included balance wire harness.

Protection Features

• Overcharge Protection: Stops charging automatically when any cell reaches approximately 4.25V.
• Over-discharge Protection: Disconnects the load when cell voltage drops to approximately 3.0V.
• Overcurrent Protection: Prevents excessive discharge current that could damage the battery.
• Short Circuit Protection: Instantly disconnects the battery in case of accidental short circuits.
• Temperature Protection: Protects against overheating during charging and discharging.
• Cell Balancing: Helps equalize cell voltages for better performance and longer battery life.

Technical Specifications

• Brand: DALY
• Battery Type: Lithium-ion (Li-ion)
• Configuration: 16S
• Nominal Voltage: 60V
• Continuous Discharge Current: 20A
• Charging Method: Common Port
• Cell Balancing: Passive Balancing
• Operating Temperature: -20°C to 70°C
• Standby Current: Less than 50µA

Certifications

• CE Certified
• RoHS Compliant
• FCC Certified
• PSE Certified
• ISO Quality Standards

Applications

• Electric bicycles (E-bikes)
• Electric scooters
• Electric skateboards
• Solar energy storage systems
• Portable power stations
• UPS and backup power systems
• RV and camper battery systems
• Power tools
• Robotics projects
• DIY lithium battery packs
• Home energy storage solutions

Why Choose the DALY 16S 20A BMS?

DALY is one of the most trusted names in battery management systems worldwide. This 16S BMS is built with high-quality MOSFETs and precision protection circuitry to ensure safe charging, stable discharging, and reliable long-term operation. Intelligent balancing technology helps maintain equal voltage across all cells, reducing stress on the battery pack and extending its service life.

Its compact design, low power consumption, and robust protection features make it suitable for both DIY enthusiasts and professional battery pack manufacturers.

Package Includes

• 1 × DALY 16S 60V 20A Lithium-ion BMS
• 1 × 17-Pin Balance Wire Harness
• 1 × User Manual

Important Note

This Battery Management System is designed exclusively for 16S Lithium-ion battery packs. It is not compatible with LiFePO₄, Lithium Titanate (LTO), or Lithium Metal battery chemistries. Always verify your battery configuration before installation.
