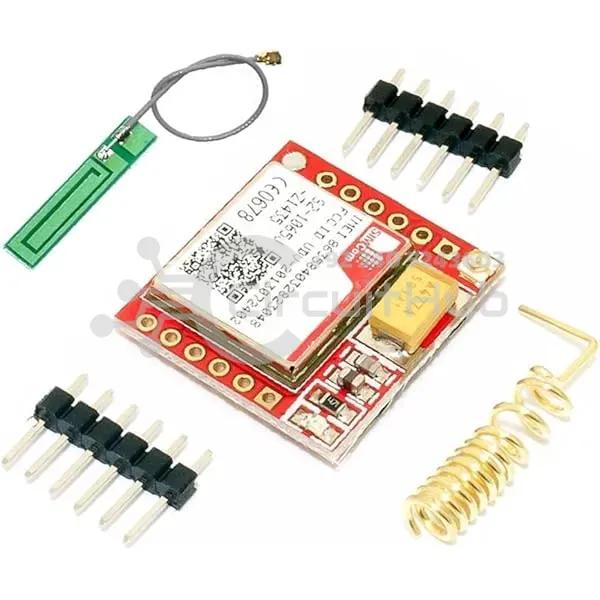

Sim800L GSM / GPRS Module with Micro Sim Card with Helical Antenna (PTA Non-approved)
In StockAll over PakistanGuaranteedGuaranteed

Sim800L GSM / GPRS Module with Micro Sim Card with Helical Antenna (PTA Non-approved)

Sim800L GSM / GPRS is a miniature cellular module which allows for GPRS transmission, sending and receiving SMS and making voice calls. Buy online in Pakistan.

PKR 1050/-

1
CATEGORY:Modules & Breakout Boards

Product Description

Sim800L GSM / GPRS Module with Micro Sim Card with Helical Antenna (Non PTA)

SIM800L Overview

SIM800L is a miniature cellular module which allows for GPRS transmission, sending and receiving SMS and making and receiving voice calls. Low cost and small footprint and quad band frequency support make this module perfect solution for any project that require long range connectivity.

Features:

  • Low cost and small footprint
  • Quad band frequency support

Functionality:

  • Module boots up, searches for cellular network and login automatically
  • On board LED displays connection state (no network coverage – fast blinking, logged in – slow blinking)

Power Consumption:

Be prepared to handle huge power consumption with peek up to 2A. Maximum voltage on UART in this module is 2.8V. Higher voltage will kill the module.

Antennas:

  • Wire antenna (solders directly to NET pin on PCB)
  • PCB antenna with double sided tape and attached pigtail cable with IPX connector

Module Pinout:

Pinout (bottom side – left):

  • RING (not marked on PBC, first from top, square) – LOW state while receiving call
  • DTR – sleep mode. Default in HIGH state (module in sleep mode, serial communication disabled). After setting it in LOW the module will wake up.
  • MICP, MICN – microphone (P + / N -)
  • SPKP, SPKN – speaker (P + / N -)

Pinout (bottom side – right):

  • NET – antenna
  • VCC – supply voltage
  • RESET – reset
  • RXD – serial communication
  • TXD – serial communication
  • GND – ground

Note: The Sim800L Module is not PTA registered. Registration with PTA is required for it to function.
