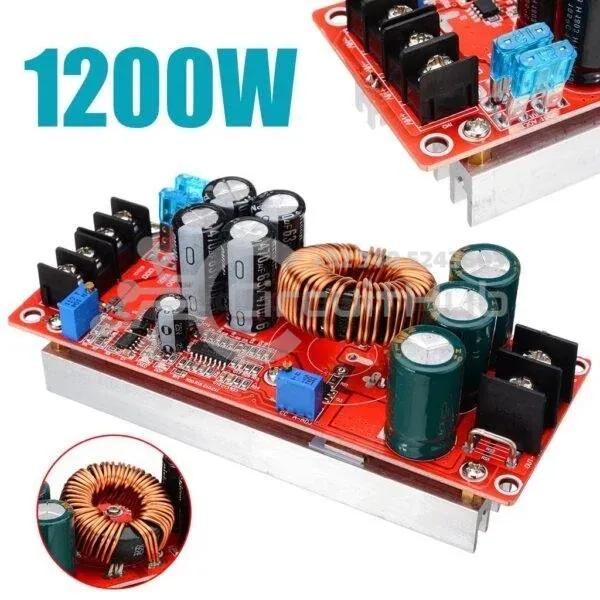

1200W 20A DC Converter Boost Step-up Power Supply Module in 8-60V Out 12-83V with Heat Sink 12V to 24V 48V

1200W DC-DC Boost Step-up Converter Module supports 8–60V DC input and 12–83V DC output with constant current. Designed for high-power applications, it includes screw terminals for easy wiring and a large heat sink for efficient heat dissipation. An optional cooling fan can be added for continuous high-power use, ensuring stable and safe operation.

Key Functions

• Overcurrent protection: automatically reduces output voltage if input current exceeds 30A
• Short-circuit protection: dual safety with built-in 40A input fuse
• Efficient heat management with a large heat sink; external fan can be added

Important Note

If the module temperature exceeds 65°C during operation, adding a cooling fan is recommended. Under normal conditions, it operates safely at room temperature without additional cooling.

Applications

• High-power LED drivers
• Lithium-ion and lead-acid battery charging
• Vehicle-mounted power supplies
• Low-voltage system power supply
• 6V, 12V, 14V, 24V battery charging
• On-board laptop power supply
• Regulated DC power systems
• Industrial and DIY electronics projects

Package Includes

• 1 × 1200W DC-DC Boost Step-up Converter (8–60V to 12–83V, 20A)

This module is perfect for DIY electronics enthusiasts, industrial projects, and anyone needing reliable high-power DC voltage conversion. Available online in Pakistan from trusted electronic component stores.
