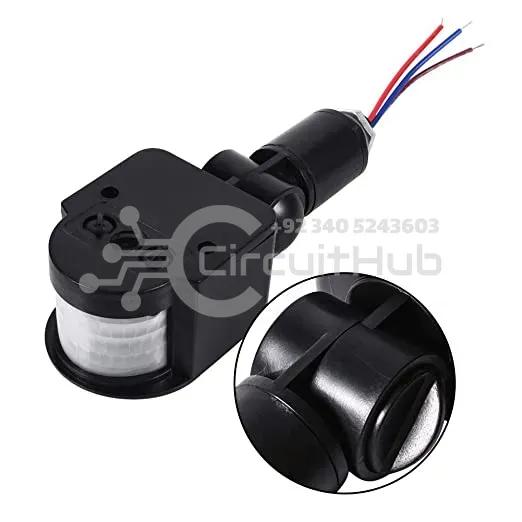

180 Degree AC 85-265V Human Infrared Sensor Switch Light Sensor Monitoring Spotlights PIR Switch
IN STOCK

180 Degree AC 85-265V Human Infrared Sensor Switch Light Sensor Monitoring Spotlights PIR Switch

220V AC human infrared sensor with intelligent pyroelectric technology, energy-saving and easy to use. Also available in 12V DC variant.

PKR 1,274

Price includes GST · Cash on delivery available

Delivery & payment

2–3 hour delivery in Rawalpindi & Islamabad
Nationwide delivery in 1–3 days · PKR 250 flat, free over PKR 10,000
Genuine parts · 7-day check warranty · tested before dispatch
Cash on Delivery available nationwide

Key specifications

Category
Modules & Breakout Boards

About this product

Features

  • Built-in human infrared sensor for automatic light control and delay switching
  • High load capacity with strong anti-jamming capability
  • Automatically turns on when people enter sensing range and off after delay
  • Day/night detection with adjustable ambient light threshold (LUX)

Automatic Work Settings

  • Automatic operation during evening, closed during the day
  • User-adjustable light duration based on local conditions

Adjustment Options

  • LUX Setting: Configure day or night operation
  • Time Setting: Adjust sensor delay time from 10 ± 2 sec to 7 ± 1 min
  • Sensitivity Setting: Adjust sensor detection sensitivity

Specifications

  • Working Voltage: AC 85–265V
  • Sensing Angle: 180°
  • Sensing Distance: Up to 12 m (25℃), adjustable
  • Sensor Delay: 5 s – 6 min, adjustable
  • LUX Setting: 2 – 2000 LUX, adjustable
  • Material: ABS
  • IP Rating: IP65
  • Installation Height: 1.8 – 2.5 m
  • Lifespan: 50,000 hours
  • Operating Temperature: –10℃ to +40℃
  • Working Humidity: <93% RH
  • Item Size: 15.6 × 6.0 × 4.7 cm (L × W × H)
  • Item Weight: 118 g
  • Size: 20 × 14 × 4.7 cm
  • Weight: 128 g

Package Includes

  • 1 × 180° AC PIR Motion Sensor Switch
  • 1 × User Manual
  • Mounting Screws
