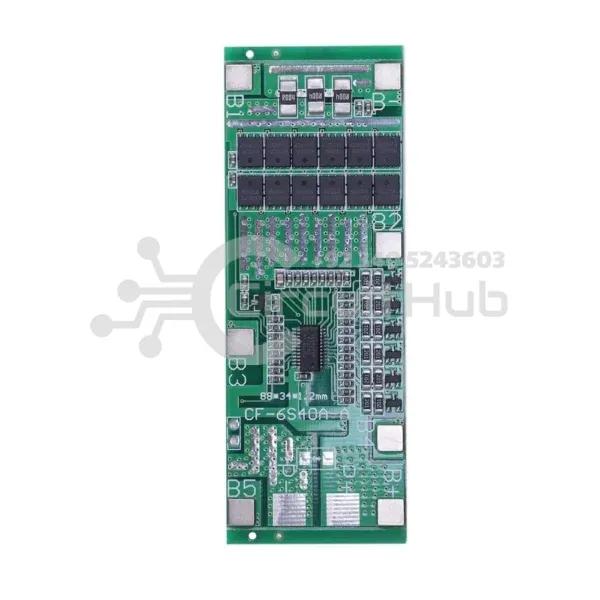

24V 6S 40A 18650 Li-Ion Lithium Battery Protection Board Solar Lighting BMS PCB with Balance Charging for E-bike Scooter

This BMS 6S 24V 40A Li-Ion PCB is designed for high efficiency and reliable performance. It is compact and lightweight, crafted for durability and long-lasting operation. The board is engineered to manage and protect 18650 lithium-ion cells, ensuring stable performance and safety under varying conditions and extreme temperatures from -30°C to 80°C. Its precise design and robust construction make it a dependable component in lithium battery setups.

Key Features of BMS 24V 6S 40A

• High-quality PCB for 6S 24V Li-Ion batteries
• Max discharge current: 40A | Instant discharge: 70A
• Charging voltage: 25.5V | Max charging current: 40A
• Overcharge & over-discharge protection
• Battery balance function for safer charging
• Overcurrent & short-circuit protection
• Low internal resistance: ≤20mΩ | Low working current: ≤40µA
• Operating temperature: -30°C to +80°C
• Compact size: 88 × 34 × 2.8mm

Applications of BMS 24V 6S 40A

• E-bikes and electric scooters
• Solar lighting systems
• 18650 Li-Ion battery packs requiring balance charging

Package Includes

• 1 × 6S 40A Li-Ion Battery Protection Board (BMS)

Note

Colors may slightly vary due to lighting and display differences. Measurements may have an error of ±1–3cm.
