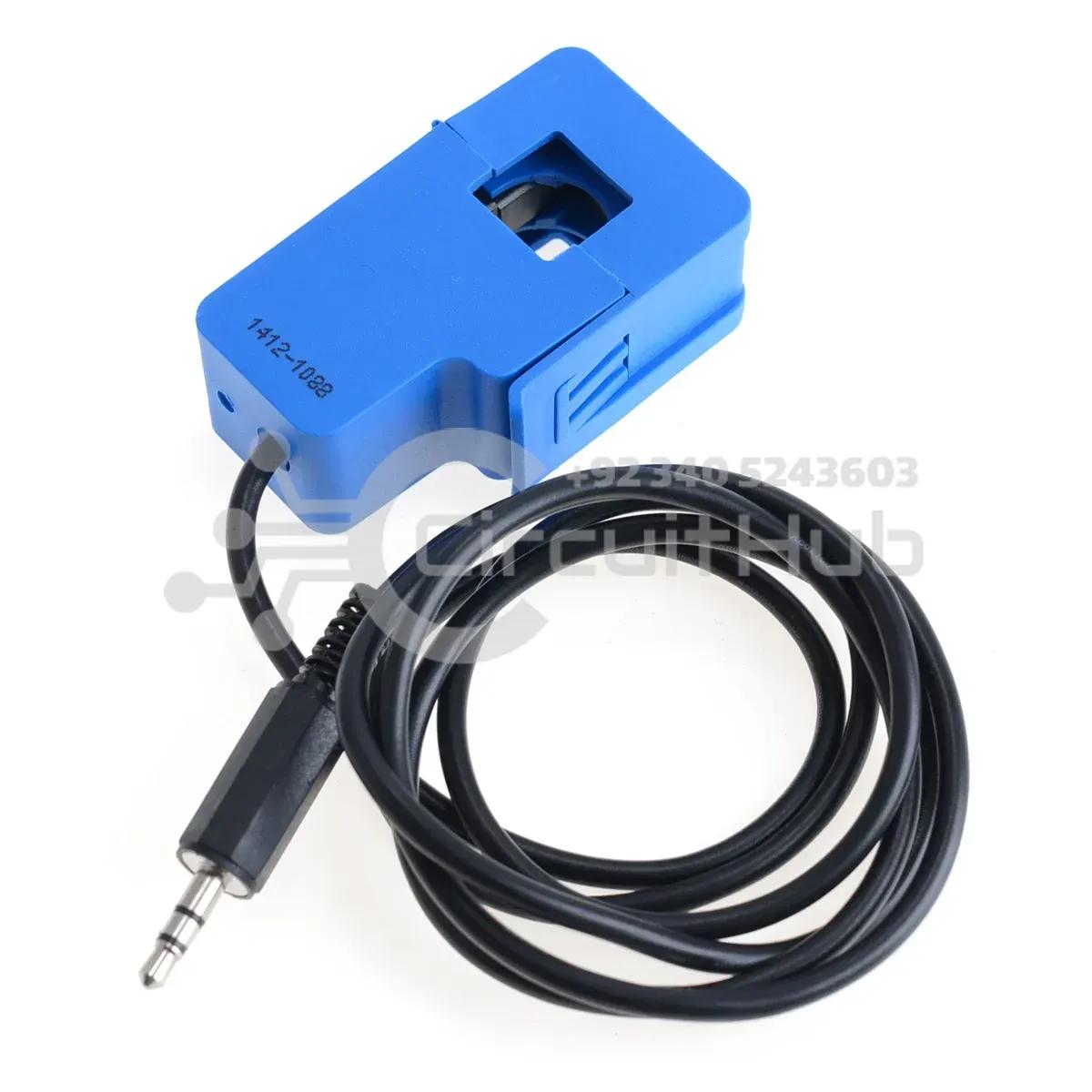

30A SCT-013-000 Non-invasive AC Current Clamp Sensor

The SCT-013-000 30A Non-invasive Current Sensor is a reliable AC current clamp designed for safe, accurate, and easy current measurement without cutting or modifying wires. Simply clip it around the live or neutral wire of your circuit, and it will output a small AC signal proportional to the current. This makes it ideal for energy monitoring projects, DIY electronics, and industrial applications. The sensor comes with a 3.5mm audio jack connector for quick integration with Arduino, ESP32, Raspberry Pi, and other microcontrollers.

What is a CT Sensor?

Current Transformers (CT sensors) are designed to measure alternating current (AC). The split-core type like SCT-013-000 is especially useful for DIY and professional projects, as it clips directly onto a wire without requiring high-voltage work. It is commonly used for whole building energy monitoring, current measurement, and load protection systems.

Typical Implementations

• Accurate AC current measurement up to 30A
• Energy monitoring systems (Arduino, ESP32, Raspberry Pi projects)
• Monitoring and protection of AC motors
• Lighting equipment current sensing
• Air compressor load monitoring
• Open Energy Monitor projects

Technical Specifications:

• Model: SCT-013-000
• Type: Non-invasive current transformer
• Core Material: Ferrite
• Input Current: 0~30A AC
• Output Mode: 0~50mA
• Cable Length: 1m
• Connector: 3.5mm audio jack
• Turns Ratio: 1:1800
• Working Voltage: 660V
• Max Sampling Resistance: 10Ω
• Accuracy: ±1%
• Linearity: ±3%
• Frequency Range: 50Hz – 1KHz
• Operating Temperature: -25°C ~ 70°C
• Dielectric Strength: 6000V AC / 1 min
• Opening Size: 13 x 13mm
• Output Options: Current output or voltage output (requires burden resistor)
• Mechanical Strength: >1000 open/close cycles at 20°C
• Safety Standard: UL94-V0 flame-retardant compliant

Package Includes:

• 1 x 30A SCT-013-000 Non-invasive AC Current Clamp Sensor

Why Choose the SCT-013-000 Current Sensor?

This non-invasive 30A AC current sensor is perfect for building energy monitors, over-current protection devices, and load management systems. It offers safe operation, accurate readings, and simple integration with popular development boards like Arduino, ESP8266, ESP32, and Raspberry Pi. Whether you are a student, or engineer, this sensor is a must-have for Electronics and professional projects.

Buy the SCT-013-000 30A Current Clamp Sensor in Pakistan at the best price and upgrade your energy monitoring projects with precision and reliability.
