4 Channel NIC2262/2272 Wireless Remote Control with Receiver Module

4 Channel RF Remote Transmitter and Receiver allows to remotely control four appliances. RF Remote Control provides 4 momentary outputs that can be wired to relays and control home appliances, lights, motors, light dimmers, robotic devices, RC cars, computer, etc. RF transmitter provides up to 150m range. Selection of custom address codes allows to operate more than one remote control system in the same area or to control one receiver with multiple transmitters. If required momentary outputs can be converted to toggle with low cost digital 4013 IC.

Specifications

• 4 Momentary Outputs
• 150m Transmission Range
• Rock-solid oscillator provides reliable operation
• Valid transmission LED status through VT connection
• High noise immunity
• Standard header connection (breadboard compatible)

RF Transmitter Specifications

• Voltage Supply: 12V/ 27A Alkaline Battery(Not Included)
• Transmission Frequency: 433MHz
• Transmission Range: 150m
• Dimensions: 62 mm x 38 mm x 14 mm

RF Receiver Specifications

• Voltage Supply: 5V
• Transmission Frequency: 433MHz
• Output Mode: Momentary
• Power Consumption: 5 mA
• Receiving Sensitivity: -101 dbm
• Output PINs: GND, 5V, D0, D1, D2, D3, VT (Status LED)
• Dimensions: 41 mm x 22 mm x 6 mm

Receiver connect:

• VT: Decoding valid indication output pin
• D0-D3: Four control signal output pins
• VCC: + 5V
• GND: – Negative Electrode

Note: There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.

Battery isn’t included in the package.

Package:

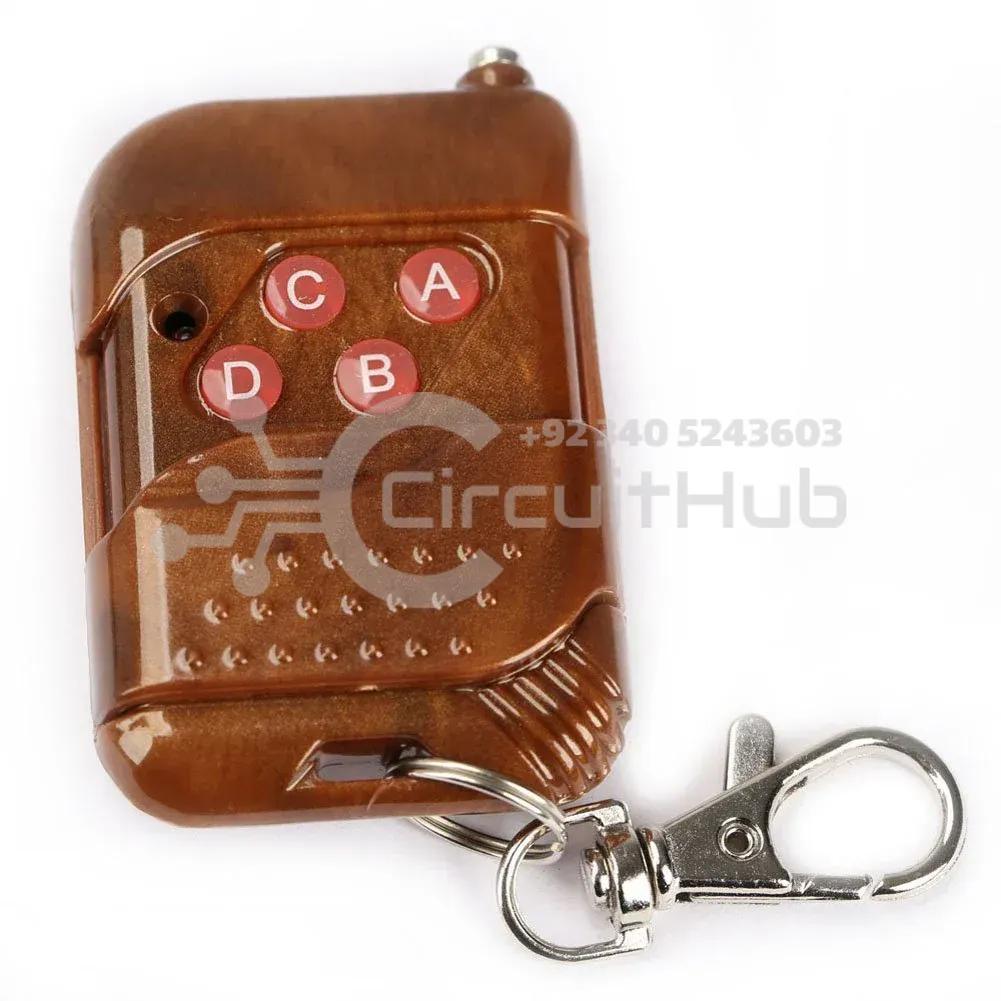

• 1 X Remote control
• 1 X decoding receiver board Voltage Supply: 12V/ 27A Alkaline Battery(Not Included)
• Transmission Frequency: 433MHz
• Transmission Range: 150m
• Dimensions: 62 mm x 38 mm x 14 mm
