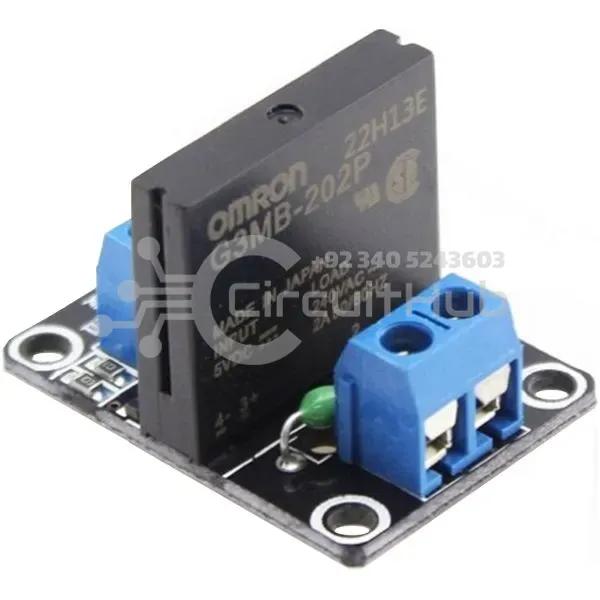

5V 1 CH SSR Low Level Solid State Relay Module AC 240V/2A

5V 1 Channel SSR Low Level Solid State Relay Module AC 240V/2A

Features:

• The rated current of 1 channel SSR module is 2A, and the voltage is DC 5V.
• LOW LEVEL TRIGGER: In industrial control, called PNP trigger, negative trigger, when the voltage between the trigger terminal and the negative pole of the power supply is 0V or close to 0V.
• CH TERMINAL: The CH terminal is the trigger terminal of the module. When there is a trigger signal, the output switches (A, B) of the solid state relay will close. The load will be conductive.
• WITH FUSE: With fuse to ensure the safe use of this module. High sensitivity.
• STABLE PERFORMANCE: Stable performance of electronic components, so that your equipment can work stably.

Specifications of 1 channel SSR:

• Control Voltage: 5V DC
• Static Current: 0mA
• Working Current: 12.5mA
• Trigger Voltage: 0-1.5V
• Trigger Current: 2mA

Module Interface:

• DC+: Connect power positive
• DC-: Connect power negative
• CH: Relay module signal trigger end (Low-level trigger is effective)

Wiring: When triggered by low voltage, a current will get through. Control Voltage: 5V DC Static Current: 0mA Working Current: 12.5mA Trigger Voltage: 0-1.5V Trigger Current: 2mA
