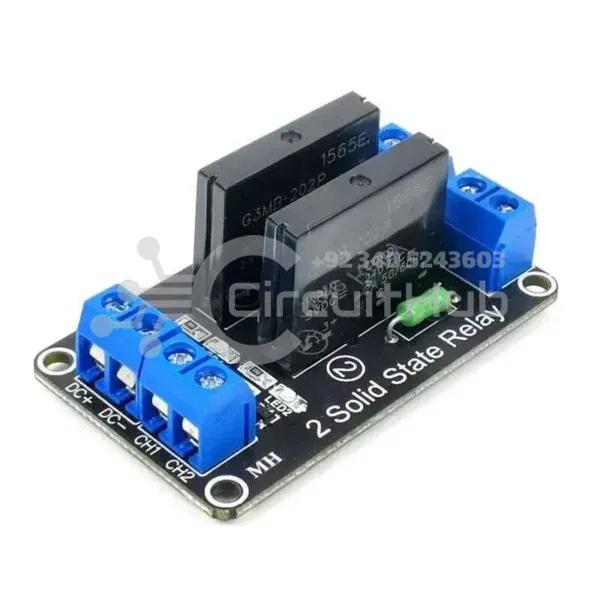

5V 2 CH SSR Low Level Solid State Relay Module AC 240V/2A

The 5V 2-Channel Solid State Relay Module (SSR) is designed for reliable, silent, and fast AC load switching. Using high-quality G3MB-202P relays, this module ensures long-lasting operation, noise-free performance, and precise control of electrical appliances and industrial devices. Ideal for Arduino, Raspberry Pi, home automation, industrial control systems, and DIY electronics, this SSR module provides safe and efficient switching of AC loads up to 240V/2A per channel.

Key Features:

• Rated Output Load: 100V ~ 240V AC (50Hz/60Hz), 2A per channel
• Rated Input Power: 5V DC, 160mA (all channels ON)
• Low-Level Trigger: Compatible with standard digital control signals
• Status Indicators: LED indicators for each channel for easy monitoring
• Control Signal:
  • Low Signal (0V – 2V / GND) → Relay ON
  • High Signal (3.3V – 5V / floating) → Relay OFF
• Durable and Reliable: Long lifespan, stable performance, and silent switching
• Compact Design: Easy to integrate into any electronic project or control system

Connections:

• DC+ : Connect to positive power supply (5V DC)
• DC- : Connect to negative power supply (GND)
• CH1 : Signal trigger for relay channel 1 (low-level trigger)
• CH2 : Signal trigger for relay channel 2 (low-level trigger)

Triggering Modes:

High-Level Triggering: Apply a positive voltage relative to ground to the trigger terminal to activate the relay.
Low-Level Triggering: Connect the trigger terminal to ground (0V) to switch the relay ON.
This dual triggering support ensures compatibility with various microcontrollers and control systems.

Applications:

• Home automation systems (lights, fans, ACs)
• Industrial control equipment
• Arduino and Raspberry Pi projects
• IoT devices requiring silent and reliable AC switching
• DIY electronics projects and prototypes

Advantages Over Mechanical Relays:

• Silent operation – no clicking sound
• Longer lifespan – solid-state components reduce wear and tear
• Fast switching – ideal for high-speed applications
• Reduced electromagnetic interference (EMI)
• Compact and lightweight design for easy integration

Safety Features:

• Overvoltage and short-circuit protection (internal design)
• Heat-resistant PCB material
• Safe operation with sensitive microcontrollers
• LED indicators for visual confirmation of operation

Technical Specifications:

Specifications of the 5V 2-Channel Solid State Relay Module

Parameter	Specification
Relay Type	G3MB-202P Solid State Relay
Number of Channels	2
Input Voltage	5V DC
Output Voltage	100V – 240V AC
Output Current	2A per channel
Trigger Type	Low-Level / High-Level
Status Indicator	LED per channel

Installation Tips:

• Ensure the module is connected to a regulated 5V DC power supply
• Do not exceed the rated AC load (240V/2A per channel)
• Keep module away from excessive heat or moisture
• Use proper insulation when connecting AC loads to avoid accidents

Upgrade your electronics projects with the 5V 2-Channel Solid State Relay Module, offering safe, fast, silent, and reliable AC switching. Its robust design, long lifespan, and flexible triggering modes make it perfect for both beginners and professional engineers.
