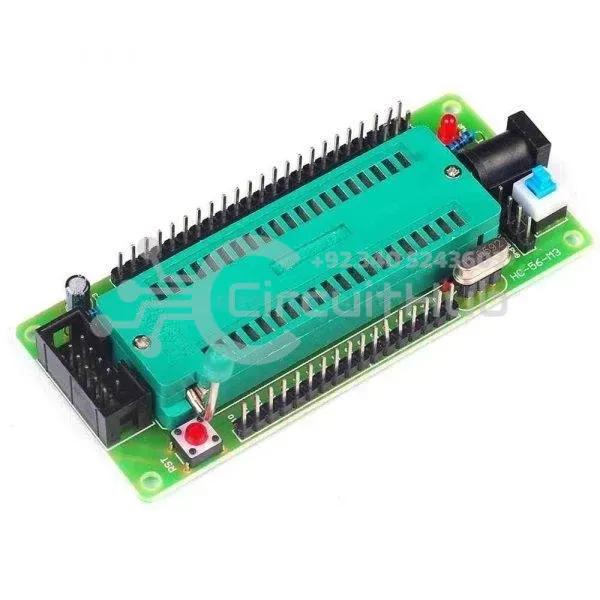

8051 AVR MCU Minimum System Development Board Microcontroller Programmer

Start your 8051 microcontroller projects easily with the AT89S52 Development Board. It includes built-in buttons, a crystal oscillator, and status LEDs, making it perfect for learning, testing, and prototyping embedded systems.

PKR 585

Price includes GST · Cash on delivery available

Delivery & payment

2–3 hour delivery in Rawalpindi & Islamabad
Nationwide delivery in 1–3 days · PKR 250 flat, free over PKR 10,000
Genuine parts · 7-day check warranty · tested before dispatch
Cash on Delivery available nationwide

Key specifications

Category
Development Boards & Kits

About this product

The 8051 89C51 89C52 89S51 89S52 AVR MCU Minimum System Development Board is a versatile and reliable microcontroller development platform designed for both beginners and professionals. It is ideal for learning embedded systems, 8051 programming, AVR basics, and circuit prototyping. With all essential components integrated on a single board, it simplifies development, testing, and debugging.

Features of 8051 AVR MCU Minimum System Development Board

1. All I/O Ports Easily Accessible

  • All I/O ports are fully broken out, providing a complete classic minimal 51 system.
  • No soldering required, making it ideal for fast prototyping and learning.

2. Integrated ISP Programming Interface

  • Built-in 10-pin ISP download interface for easy AT89S52 programming.
  • Supports multiple microcontrollers including STC89C52, STC12C5A60S2, STC11/10x series, and AT89S52.

3. Easy Crystal Oscillator Replacement

  • Round-hole socket allows quick and convenient crystal oscillator replacement.
  • Default crystal frequency is 11.0592 MHz for stable and accurate operation.

4. Flexible Power Supply Options

  • Supports power input via DC-005 socket (5.5mm × 2.1mm) or pin header next to the power switch.
  • Includes a dedicated 5V power connector and power indicator LED.

5. Enhanced Convenience & Stability

  • Reset button supports both power-on and external reset functions.
  • Green IC locking seat enables easy microcontroller replacement.
  • Port P0 includes onboard pull-up resistors for improved signal stability.
  • Three additional VCC and GND expansion channels for external modules.

6. Compact and Durable PCB Design

  • PCB dimensions: 40mm × 88mm (4.1cm × 8.9cm).
  • Four mounting holes allow secure installation in projects and enclosures.

Package Includes

  • 1 × 8051 Minimum System Development Board
  • 1 × 11.0592 MHz Crystal Oscillator
  • All port headers (P0, P1, P2, P3) with pull-up resistors on P0
  • 5V power connector and DC5 input socket
  • Power indicator LED
  • 12MHz crystal oscillator (optional)
  • Serial download interface (RXD, TXD, GND) for STC microcontrollers
  • ATMEL ISP port for AT89S series programming
  • Self-locking power switch and reset button
  • IC locking seat for easy chip replacement
