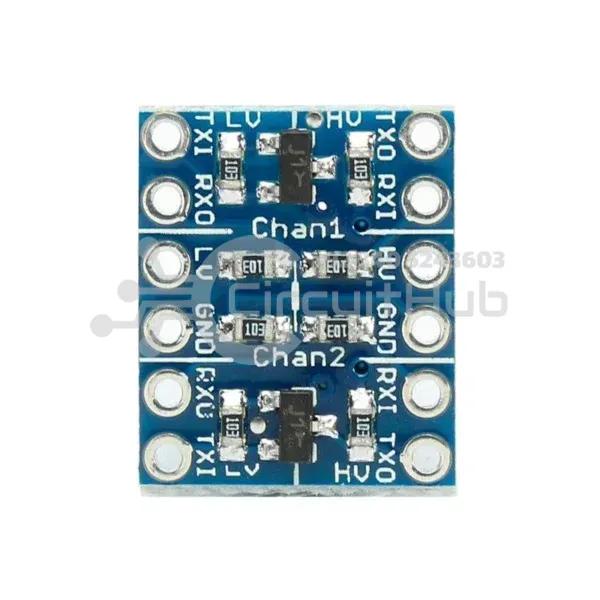

Bi-Directional 2 Channels Logic Level Converter 5V to 3.3V

This logic level converter module is a 2-channel bi-directional device that safely converts 5V signals to 3.3V and 3.3V signals to 5V. It is perfect for connecting 3.3V devices like ESP8266 to 5V systems and also supports 2.8V and 1.8V devices.

Features of Logic Level Converter

• Four MOSFET channels for two-way conversion between 3V and 5V
• Power input with anti-reverse protection and integrated 3.3V LDO (current ≤ 150mA)
• Power indicator included
• Supports UART, IIC, 1-WIRE, and SPI communication
• Dimensions: 0.63 x 0.52″ (16.05 x 13.33 mm)

Package Includes

• 1 x 2-channel bi-directional logic level converter module
• High Voltage: 5V
• Low Voltage: 3.3V
• GND for negative power
• 5V TTL RXI input, 3.3V TTL RXO output
• TXI input/output of 3.3V TTL, TXO input/output 5V TTL (bi-directional switching)
• Size: 15.5mm x 16mm x 11.5mm

Compatibility

The logic level converter 5V to 3.3V module is breadboard compatible and can be directly placed on a standard breadboard for prototyping and electronics projects.
