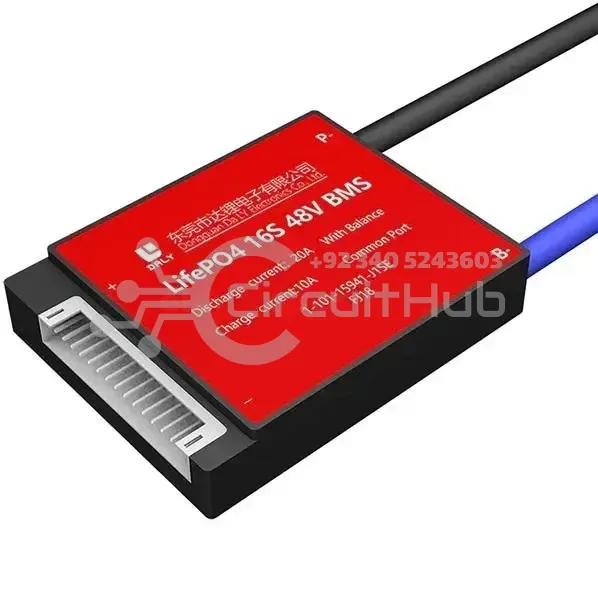

DALY 16S 48V 20A BMS for Lifepo4 Battery Pack Balanced Charging Board

DALY BMS 16S 48V LiFePO4 PCB Protection Board is designed for 16 x 3.2V LiFePO4 cells, providing reliable battery management, protection, and balancing functions. This high-quality Battery Management System (BMS) includes a balance wire and temperature sensor, making it perfect for 48V lithium battery packs used in various applications. Buy online in Pakistan for top performance and durability. This 16S fixed configuration BMS is built exclusively for LiFePO4 battery packs and is not compatible with Li-Ion, Li-Metal, or LTO batteries. It ensures safe charging, discharging, and overall battery health for long-term use.

Key Features

• Overcharge & Over-discharge Protection: Stops charging when single cell voltage reaches 3.7V and stops discharging at 2.5V.
• Temperature Protection: High-temp cut-off at 70℃ and low-temp protection at -20℃.
• Short Circuit Protection: Automatically shuts down the battery in case of defects or damage.
• Waterproof Design: One of the few waterproof BMS models in the lithium industry.
• Battery Compatibility: Compatible with various LiFePO4 battery types including 18650, 21700, and 36500 cylindrical cells, as well as prismatic cells.

Certifications

ISO / FCC / RoHS / PSE / CE Approved for quality and safety assurance.

Applications

• Solar power systems & RVs
• Electric bikes & skateboards
• Camping boats & power tools
• Lawnmowers & household energy storage systems

Package Includes

• 1 x DALY 16S LiFePO4 48V BMS (20A rated)
• 1 x Balanced Wire Sense Cable (17-pin connector)
