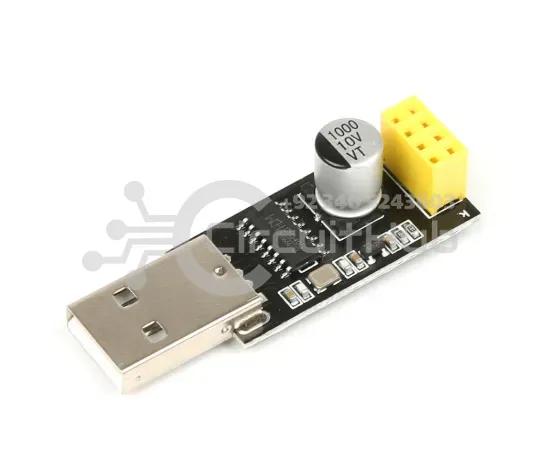

CH340 USB To ESP8266 ESP-01 WIFI Module Adapter Board

CH340 USB to ESP8266 ESP-01 Adapter Board provides a smooth and reliable connection between your computer and ESP8266 WiFi modules. This adapter is perfect for programming, testing, and troubleshooting your ESP8266 ESP-01 modules on Windows and other compatible systems.

• Seamlessly connects ESP8266 WiFi modules to your PC through USB for effortless serial communication.
• Ideal for programming, debugging, and testing ESP8266 ESP-01 modules efficiently.

Features and Advantages

• Built with a reliable CH340 USB-to-serial chip, offering stable performance and broad compatibility with Windows operating systems.
• Integrated 1000mF solid-state capacitors maintain a steady power supply and prevent the ESP8266 module from freezing or malfunctioning.
• Supports USB input voltage ranging from 4.5V to 5.5V, with a built-in 3.3V LDO regulator for safe operation.
• Handles current from 0 to 240 mA, compatible with both 3.3V and 5V logic systems.

Compact Board Size

Small and portable design: 34.5 mm x 17.2 mm, making it easy to integrate into any development setup or electronics project.

How the Board Works

• The ESP8266 module aligns perfectly with the USB interface for easy docking. Just plug the module into the adapter and use serial debugging software to test or program your WiFi module.

Package Contents

• 1 x USB To ESP8266 WIFI Module

Applications

• Programming, testing, and debugging ESP8266 ESP-01 WiFi modules
• Establishing PC-to-WiFi serial communication for microcontroller projects
• Arduino projects, IoT systems, and other embedded development applications
