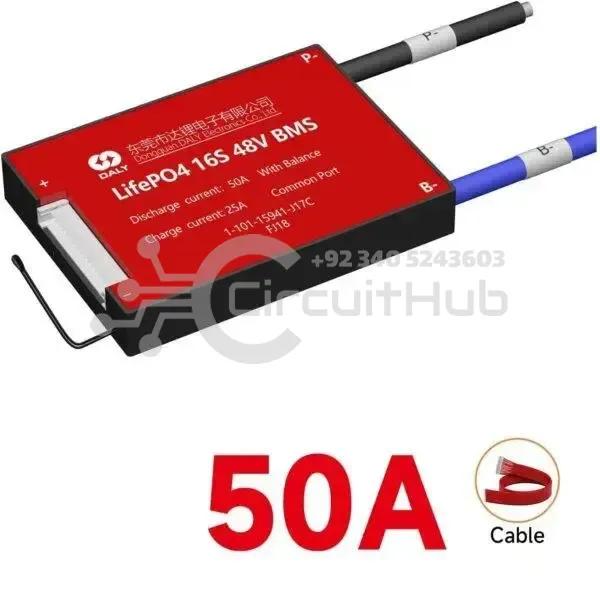

DALY BMS LFP LifePo4 16S 48V 50A BMS Battery Management System for Lifepo4 Battery Pack Balanced Charging Board

DALY BMS 16S 48V LiFePO4 PCB Protection Board is a high-quality Battery Management System designed specifically for 16-cell (3.2V each) 48V LiFePO4 lithium battery packs. It comes with a balance wire and temperature sensor, offering reliable performance, advanced safety features, and durability for long-term use. Buy online in Pakistan for solar energy systems, e-bikes, electric skateboards, and more.

Key Features

• Fixed 16S Configuration: Compatible only with 16-cell 48V LiFePO4 battery packs. Not suitable for Li-ion, Li-Metal, or LTO batteries.
• Overcharge & Over-discharge Protection: Automatically stops charging when a single cell reaches 3.7V and stops discharging when voltage drops to 2.5V.
• Temperature Protection: High-temperature cutoff at 70℃ during discharge and low-temperature cutoff at -20℃.
• Short Circuit Protection: Instantly shuts down the battery in case of circuit faults or damage.
• Waterproof Design: One of the few waterproof BMS models in the lithium industry.
• Certifications: ISO, FCC, RoHS, PSE, and CE approved.

Applications

Perfect for a variety of uses including:

• Solar power systems and RV setups
• Electric bikes and skateboards
• Camping power supply
• Boats and marine applications
• Power tools and lawn equipment
• Home energy storage systems

Technical Specifications

• Configuration: 16S LiFePO4
• Rated Voltage: 48V
• Rated Current: 50A
• Compatible Cells: 18650, 21700, 36500 cylindrical cells, and prismatic cells
• Balanced Wire Sense Cable: 17-wire with connector

Package Includes

• 1 x 16S LiFePO4 48V 50A DALY BMS
• 1 x Balanced wire sense cable (17-pin)

Upgrade your battery pack safety and performance with the DALY 16S 48V LiFePO4 BMS. Order now and get it delivered anywhere in Pakistan.
