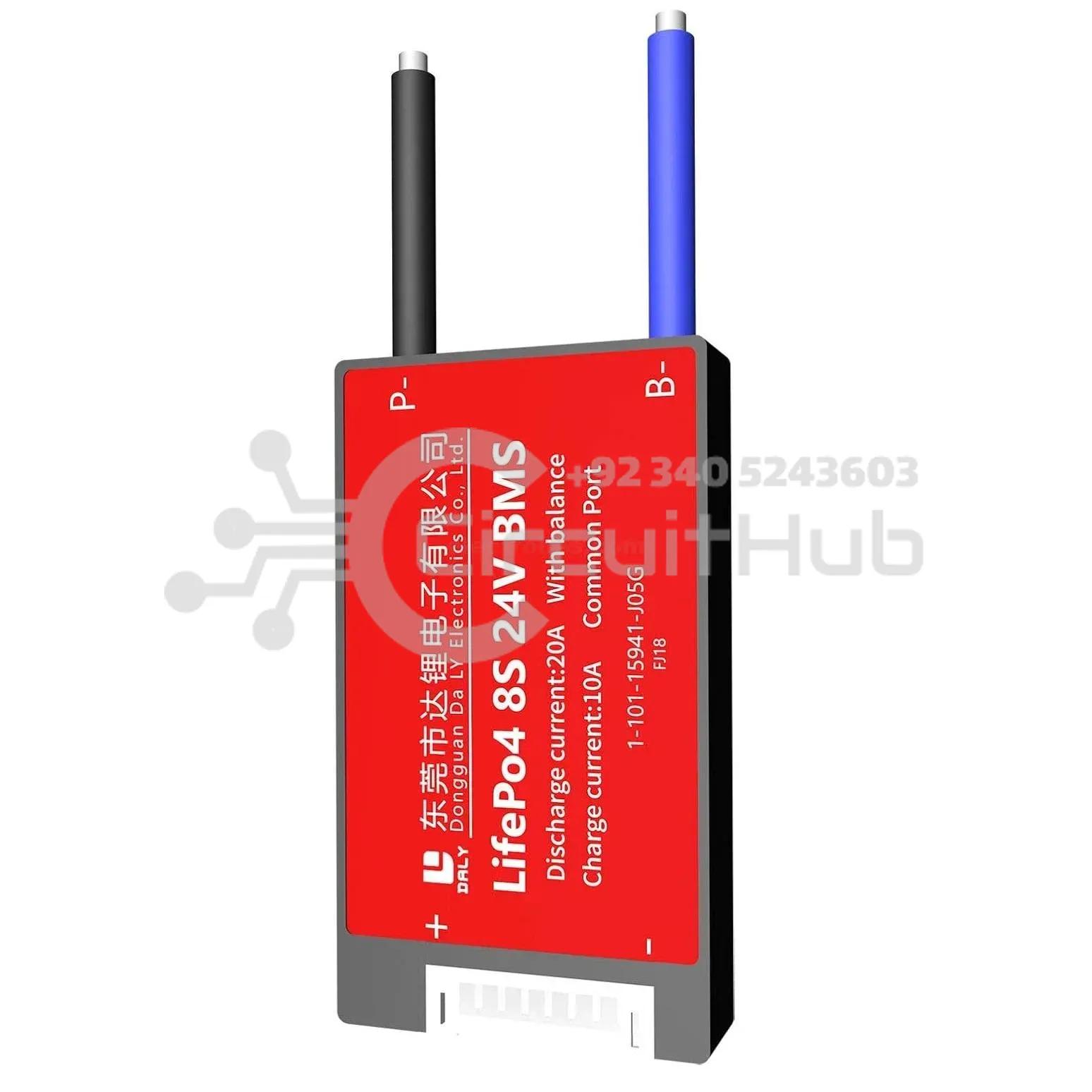

DALY BMS LFP LifePo4 8S 24V 20A BMS Battery Management System for Lifepo4 Battery Pack Balanced Charging Board

DALY 8S 24V LiFePO4 BMS – High-quality, waterproof battery management system (BMS) designed for 8-cell 24V LiFePO4 battery packs. Includes balance wire and temperature sensor for safe, reliable operation. Ideal for solar power systems, electric bikes, skateboards, RVs, and home energy storage solutions. Available online in Pakistan.

This fixed-configuration 8S BMS is built exclusively for LiFePO4 battery packs. It is not compatible with Li-Ion, Li-Metal, or LTO batteries. Compact, durable, and highly reliable, it provides overcharge, over-discharge, temperature, and short-circuit protection while ensuring balanced charging for various cylindrical cells (18650, 21700, 36500) and prismatic cells.

Key Features

• Overcharge & Overdischarge Protection: Stops charging at 3.7V per cell and prevents over-discharge below 2.5V per cell to extend battery life.
• Temperature Protection: High temperature cut-off at 70°C and low-temperature protection down to -20°C.
• Short Circuit & Fault Protection: Automatically shuts down the battery pack in case of shorts, overload, or wiring errors.
• Balance Charging: Maintains even voltage across all cells for optimal performance and longevity.
• Waterproof & Durable: IP65-rated casing for outdoor and rugged applications.
• Wide Compatibility: Works with cylindrical 18650, 21700, 36500, and prismatic LiFePO4 cells.
• Easy Installation: Pre-wired balance cable and standard connectors for quick setup.

Certifications & Quality Standards

• ISO certified
• FCC compliant
• RoHS certified
• PSE approved
• CE approved

Applications

• Solar power and off-grid energy storage systems
• Electric bikes, skateboards, and scooters
• Camping, boats, and portable power tools
• Lawn mowers, household battery banks, and DIY energy projects
• Renewable energy storage and RV power management

Technical Specifications

• Type: 8S LiFePO4 BMS
• Nominal Voltage: 24V
• Maximum Current: 20A continuous
• Overcharge Cut-Off: 3.7V per cell
• Overdischarge Cut-Off: 2.5V per cell
• High Temperature Cut-Off: 70°C
• Low Temperature Protection: -20°C
• Internal Balance Current: 50–100mA per cell
• Dimensions: Compact and lightweight for easy installation

Package Includes

• 1x 8S 24V 20A LiFePO4 BMS
• 1x 9-wire balance sense cable with connector

Why Choose DALY 8S LiFePO4 BMS?

The DALY 8S 24V 20A LiFePO4 BMS is your reliable solution for managing 8-cell LiFePO4 battery packs safely and efficiently. With advanced protection features, balanced charging, and waterproof durability, it is perfect for solar energy systems, e-mobility applications, and DIY energy storage projects. Buy online in Pakistan today for safe, long-lasting battery performance.
