ECG Module AD8232 Heart ECG Monitoring Sensor Module Kit for Arduino

The AD8232 ECG module heart ECG monitoring sensor module Kit For Arduino is a cost-effective board use to measure the electrical activity of the heart. This electrical activity can be categorized as an ECG or Electrocardiogram and output as an analog reading.

Features:

• ECGs can be extremely noisy.
• The AD8232 Single Lead Heart Rate Monitor acts as an op-amp to help obtain a clear signal from the PR and QT Intervals easily.
• The ECG module AD8232 heart ECG monitoring sensor module is an integrated signal conditioning block for ECG and other bio-potential measurement applications.

Design:

• The ECG Module AD8232 Heart ECG Monitoring Sensor Module Kit for Arduino is designed to extract, amplify, and filter small bio-potential signals in the presence of noisy conditions; such as those created by motion or remote electrode placement.

Connections:

• The AD8232 Heart Rate Monitor breaks out nine connections from the IC that you can solder pins, wires, or other connectors too. SDN, LO+, LO-, OUTPUT, 3.3V, GND provide essential pins for operating this monitor with an Arduino or other development board.

Applications:

• Fitness and sports heart rate monitoring
• Portable ECG
• Remote health monitor
• Game peripheral equipment
• Bioelectricity signal collection

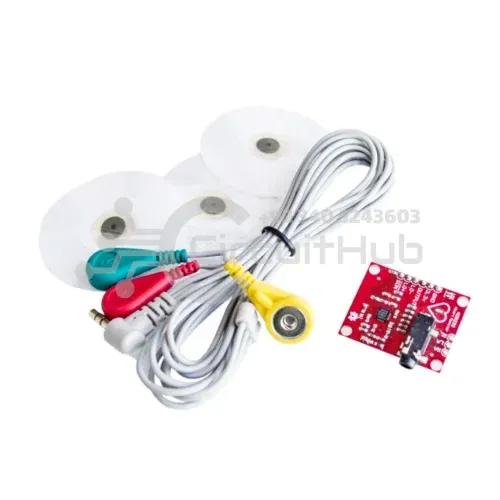

Packaging Included:

• 1 x AD8232 Based ECG Sensor Board
• 1 x Lead Cable
• 3x Disposable Pads
