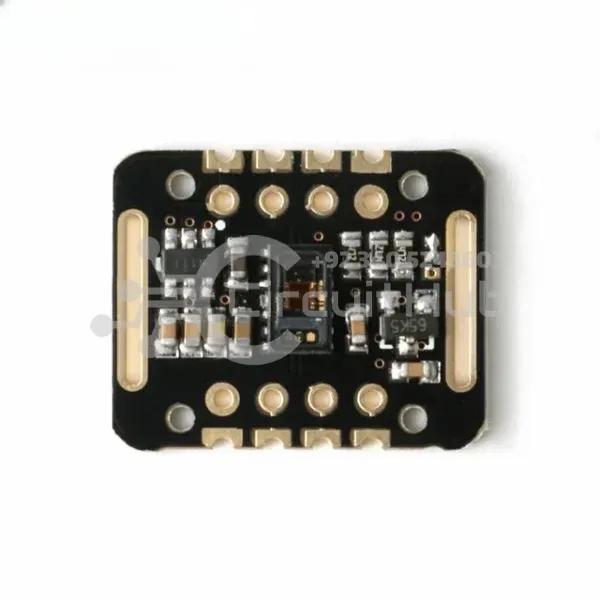

MAX30102 Heart Rate Pulse Oximeter Blood Oxygen Sensor Module For Arduino

The MAX30102 is a heart rate and pulse oximeter sensor module for Arduino, used for detecting pulse and blood oxygen saturation. This module is among the best pulse oximeters in Pakistan for DIY projects and health monitoring applications. Check the price for pulse oximeter online to get it delivered in Pakistan.

Parameters

• LED peak wavelength: 660nm / 880nm
• LED supply voltage: 3.3-5V
• Detection signal type: Optical reflection signal (PPG)
• Output signal interface: I2C interface
• Communication interface voltage: 1.8V / 3.3V / 5V (optional)

Working Principle

The pulse oximeter works using the photolysis method. It measures pulse and blood oxygen saturation by detecting light transmittance changes in human tissue caused by blood vessel pulsation. Specific wavelength LEDs illuminate oxyhemoglobin (HbO2) and hemoglobin (Hb) in arterial blood, and the transmitted light is converted into electrical signals. These signals are amplified and output for monitoring.

Pin Description

• VIN: Main power supply input (1.8V-5V). Choose pull-up voltage according to the master device (1.8V or 3.3V).
• SCL: Connect to the I2C clock line.
• SDA: Connect to the I2C data line.
• INT: Interrupt pin of the MAX30102 chip.
• RD: RED LED ground (usually not connected).
• IRD: IR LED ground (usually not connected).
• GND: Ground wire.

Package Includes

• 1 x MAX30102 Heart Rate and Pulse Oximeter Sensor Module

Get the MAX30102 pulse oximeter module from CircuitHub, the best online store for electronic components in Pakistan. It provides accurate pulse and SpO2 readings, ideal for DIY electronics, health monitoring projects, and educational applications.
