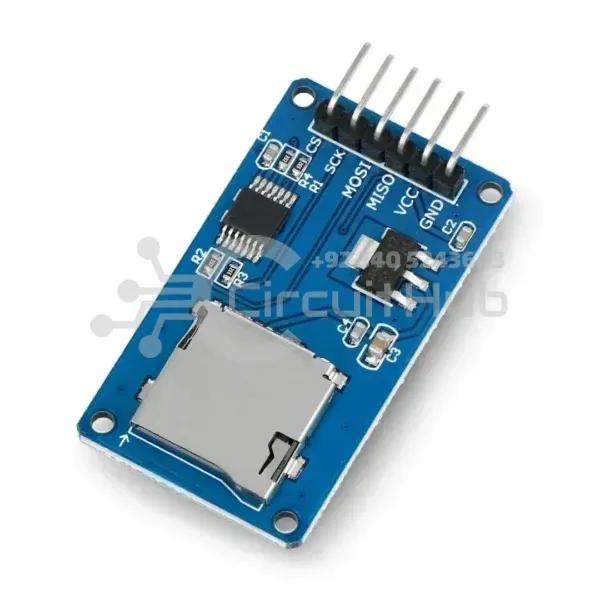

Micro SD TF Card Reader Adapter Module for Arduino

High-Quality Micro SD TF Card Reader Module for Arduino – SPI Interface, 3.3V–5V, Buy Online in Pakistan.

PKR 195

Price includes GST · Cash on delivery available

Delivery & payment

2–3 hour delivery in Rawalpindi & Islamabad
Nationwide delivery in 1–3 days · PKR 250 flat, free over PKR 10,000
Genuine parts · 7-day check warranty · tested before dispatch
Cash on Delivery available nationwide

Key specifications

Category
Modules & Breakout Boards

About this product

The Micro SD TF Card Reader Adapter Module enables Arduino and other microcontroller boards to easily read from and write data to Micro SD / TF memory cards using the SPI communication interface. This module is ideal for data logging, file storage, audio playback, image storage, and embedded system projects.

Using the Arduino IDE and its built-in SD library, you can quickly initialize the SD card, create files, store sensor data, and retrieve information in real time. This makes the Micro SD module a must-have component for Arduino-based storage applications.

Key Features of Micro SD TF Card Reader Module

  • Supports Micro SD and TF memory cards
  • SPI interface ensures fast and stable communication
  • Compatible with Arduino, ESP8266, ESP32, STM32, and other microcontrollers
  • Onboard 3.3V voltage regulator for safe SD card operation
  • Plug-and-play compatibility with Arduino IDE SD library
  • Compact design suitable for embedded and portable projects

Micro SD TF Card Pin Configuration (Pinout)

The Micro SD card module features 6 essential pins for power supply and SPI communication. Understanding the pinout is important for correct interfacing:

  • GND: Ground connection
  • VCC: Power input (4.5V–5.5V)
  • MISO: Master In Slave Out (SPI data output)
  • MOSI: Master Out Slave In (SPI data input)
  • SCK: Serial Clock for SPI communication
  • CS: Chip Select pin to enable the SD card module

How to Interface Micro SD Card Module with Arduino

  • Connect VCC to Arduino 5V and GND to Ground
  • Connect MISO, MOSI, SCK, and CS to Arduino SPI pins
  • Use the Arduino IDE and include the SD library
  • Format the Micro SD card to FAT16 or FAT32
  • Upload example sketches to test read/write functionality

Technical Specifications

  • Operating Voltage: 4.5V – 5.5V
  • Built-in 3.3V voltage regulator for SPI signals
  • Current Consumption: Approx. 80mA
  • Communication Interface: SPI
  • Pin Pitch: 2.54 mm
  • Mounting Holes: M2 (38 mm and 20 mm spacing)
  • Module Dimensions: 42 x 24 mm

Applications of Micro SD TF Card Reader Module

  • Arduino data logging projects
  • Sensor data storage and retrieval
  • Audio and multimedia storage systems
  • IoT and embedded system applications
  • DIY electronics and robotics projects

Package Includes

  • 1 × Micro SD TF Card Reader Adapter Module
