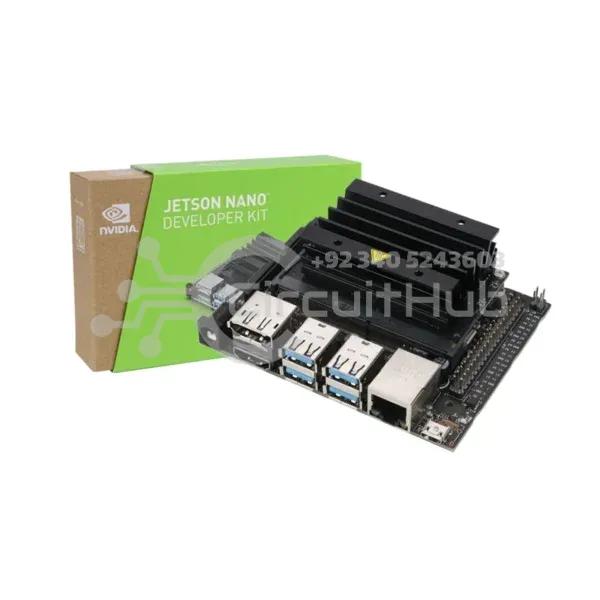

NIVDIA JETSON NANO B01 4GB Ram Developer Kit based on JETSON NANO 16GB EMMC Module Board

The NVIDIA® Jetson Nano™ Developer Kit delivers the compute performance to run modern AI workloads at an unprecedented size, power, and cost. Developers, learners, and makers can now run AI frameworks and models for applications like image classification, object detection, segmentation, and speech processing.

Key Features:

• Jetson Nano Module
• 128-core NVIDIA Maxwell™ GPU
• Quad-core ARM® A57 CPU
• 4 GB 64-bit LPDDR4
• 10/100/1000BASE-T Ethernet

The developer kit can be powered by micro-USB and comes with extensive I/Os, ranging from GPIO to CSI. This makes it simple for developers to connect a diverse set of new sensors to enable a variety of AI applications. It’s incredibly power-efficient, consuming as little as 5 watts.

NVIDIA JetPack Support:

• Board support package (BSP)
• Linux OS
• NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries

Jetson Nano is also supported by NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The software is even available using an easy-to-flash SD card image, making it fast and easy to get started.

Specifications:

• GPU: 128-core Maxwell
• CPU: Quad-core ARM A57 @ 1.43 GHz
• Memory: 4 GB 64-bit LPDDR4 25.6 GB/s
• Storage: microSD (not included)
• Video Encoder: 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
• Video Decoder: 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265)
• Camera: 2x MIPI CSI-2 DPHY lanes
• Connectivity: Gigabit Ethernet, M.2 Key E
• Display: HDMI 2.0 and eDP 1.4
• USB: 4x USB 3.0, USB 2.0 Micro-B
• Others: GPIO, I2C, I2S, SPI, UART
• Mechanical: 100 mm x 80 mm x 29 mm

Version Change Information:

• The B01 revision carrier is compatible with the production specification Jetson Nano module. The A02 revision carrier is not.
• Removed Button Header [J40] Position
• Removed Serial Port Header [J44] Position
• Adjusted the Position of Power Select Jumper [J48]
• Adjusted the Position of Camera Connector [J13]
• Added Camera Connector [J49] location

Factory JetPack Upgrade from 4.2 SDK to 4.3 SDK

Package Include: 1x NVIDIA Jetson Nano Developer Kit-B01 Micro-USB 5V 2ADC power adapter 5V 4A
