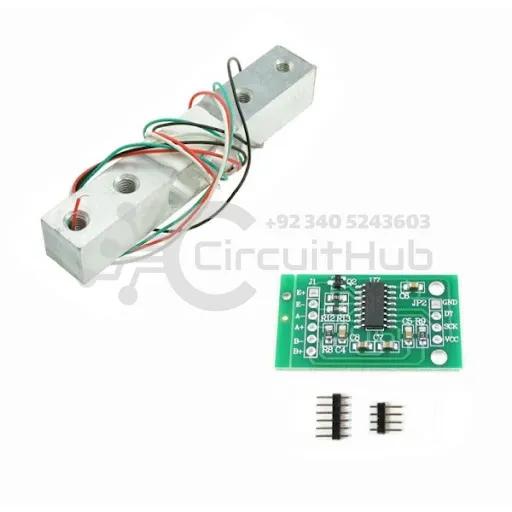

10Kg Scale Bar Load Cell Weight Sensor

High-precision 10kg straight bar load cell designed for accurate weight and force measurement. Ideal for digital scales, automation systems, and embedded electronics projects. Buy Online in Pakistan.

PKR 455

Price includes GST · Cash on delivery available

Delivery & payment

2–3 hour delivery in Rawalpindi & Islamabad

Nationwide delivery in 1–3 days · PKR 250 flat, free over PKR 10,000

Genuine parts · 7-day check warranty · tested before dispatch

Cash on Delivery available nationwide

Key specifications

About this product

The straight bar load cell, also known as a strain gauge load sensor, is a highly accurate force and weight measurement device designed to measure loads up to 10kg. It works by converting applied force or weight into a proportional electrical signal through changes in electrical resistance. When pressure is applied, the internal strain gauges deform slightly, producing a measurable voltage variation.

This type of load cell is widely used in digital weighing scales, electronic measurement systems, industrial automation, robotics, and IoT-based weight monitoring applications. It allows precise weight detection, continuous load monitoring, and real-time feedback, making it ideal for both DIY electronics projects and professional embedded systems.

Key Features:

High-precision aluminum alloy construction for durability and stability
Measures static and dynamic loads up to 10kg
Four integrated strain gauges arranged in a Wheatstone bridge for accurate output
Low power consumption, suitable for battery-operated devices
Compatible with popular load cell amplifiers such as HX711
Compact and lightweight design for easy installation

Specifications:

Material: Aluminum Alloy
Maximum Capacity: 10kg
Strain Gauges: Four, Wheatstone bridge configuration
Wiring Color Code: Red = E+, Green = O+, Black = E-, White = O-
Protection Rating: IP66 (dust and water resistant)
Mounting Holes: Two M4 and two M5 through-holes

Technical Details:

Sensing Range: 0 – 10kg
Operating Supply Voltage: 2.6V – 5.5V
Operating Temperature: -40°C to +85°C
Dimensions: 80 × 12.6 × 12.6 mm
Output Interface: Analog

Applications:

Digital weighing scales
Arduino and Raspberry Pi projects
Industrial force measurement systems
Smart inventory and load monitoring solutions
Robotics and automation platforms
DIY electronics and academic projects

Why Choose This Load Cell?

This 10kg straight bar load cell offers a perfect balance of accuracy, durability, and affordability. Its compact size, wide operating temperature range, and compatibility with common microcontrollers make it an excellent choice for engineers, students, and hobbyists looking for reliable weight measurement performance.
