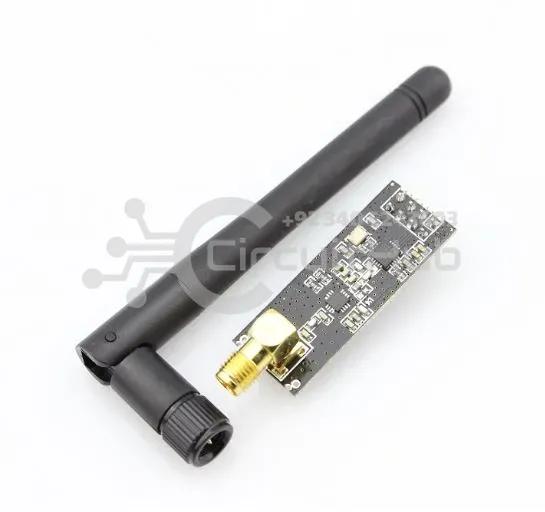

2.4GHz NRF24L01+PA+LNA Wireless RF Module

The NRF24L01+PA+LNA 2.4GHz Wireless RF Module is a high-performance transceiver designed for long-range wireless communication. With powerful +20dBm transmit power, low power consumption, and excellent stability, it is ideal for wireless data transfer in IoT, automation, and remote control applications. Equipped with an SMA antenna, this module ensures reliable and extended signal coverage, making it perfect for hobbyists, engineers, and professional projects.

Key Features

• Operates on the 2.4GHz global ISM band (license-free)
• Transmit power greater than +20dBm for extended range
• Supports up to six-channel data reception
• High-speed 2Mbps data rate enables smooth VoIP communication
• Low operating voltage: 2.7V to 3.6V
• 125 frequency points support multi-point communication and frequency hopping

Technical Specifications

• Operating Voltage: 3.0V – 3.6V
• Max Output Power: +20 dBm
• Transmit Mode Current: 115mA
• Receive Mode Current: 45mA
• Standby Mode Current: 4.2µA
• Operating Temperature: -20°C to +70°C

Applications

• Wireless remote controls and telemetry
• Fire safety and security systems
• Wireless tags, identification, and RF smart cards
• Small wireless data terminals
• Bio-signal acquisition systems
• Wireless 232 and 422/485 data communication

Package Includes

• 1 x 2.4GHz NRF24L01+PA+LNA Wireless Transceiver Module
• 1 x SMA Antenna
