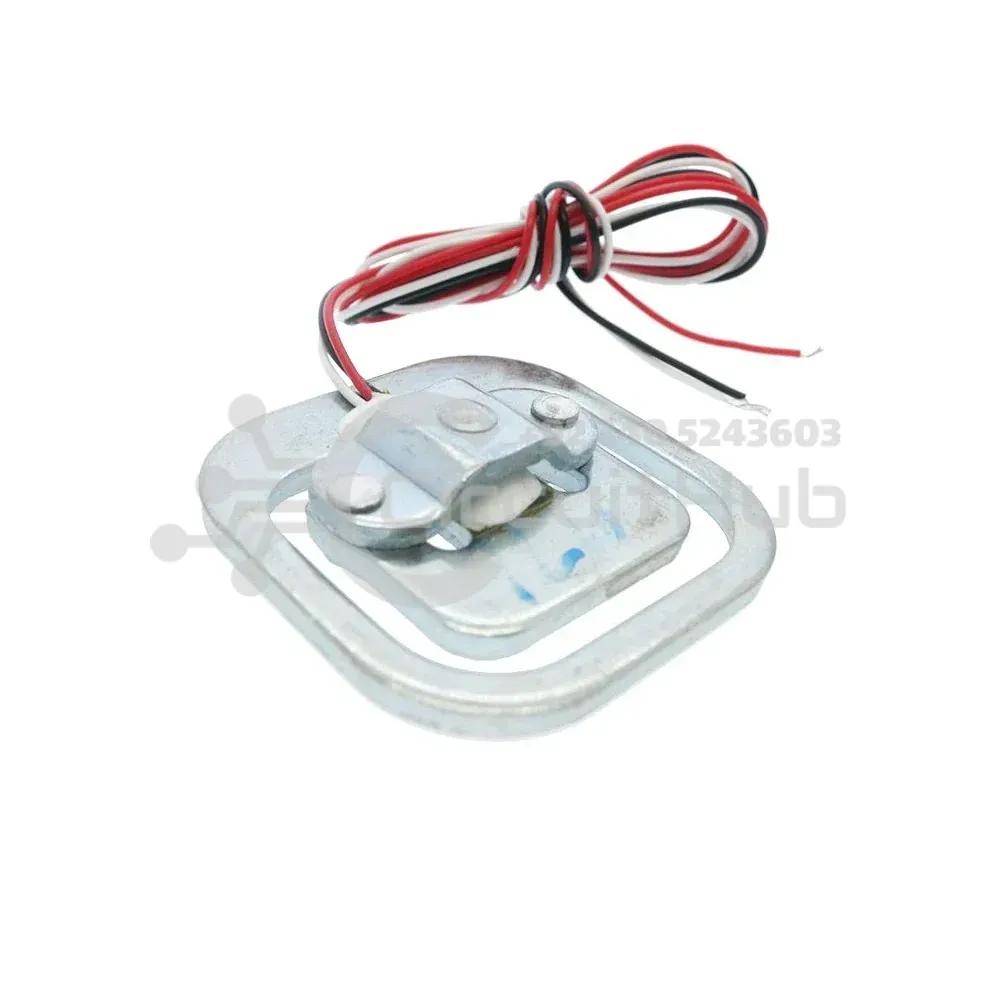

50KG Half-bridge Body Scale Load Cell Weighing Weight Sensor Strain Gauge

The 50kg Half-Bridge Body Scale Load Cell Sensor is designed for accurate force measurement in weighing systems. It uses a strain gauge on an E-shaped beam to detect precise changes in pressure, making it ideal for DIY scales, industrial weighing systems, and electronic measurement projects. This load cell measures applied force through the deformation of its strain beam. When pressure is applied, the sensor outputs an electrical signal proportional to the load, allowing highly accurate weight readings.

Methods of Use

You can use this sensor in different bridge configurations:

• Single sensor: 50kg range using an external resistor for a full bridge.
• Two sensors: Combine for 100kg total range.
• Four sensors: Combine for up to 200kg total range.

Key Features

• High-accuracy 50kg half-bridge strain gauge with 1000Ω internal resistance.
• Made of alloy steel— durable, reliable, and easy to install.
• Widely used in hopper scales, platform balances, and belt weighing systems.
• Supports multiple sensors in parallel for increased capacity.

Specifications

• Capacity: 50kg
• Supply Voltage: 2.6V – 5.5V
• Output Sensitivity: 1.0 ± 0.1 mV/V
• Nonlinearity: 0.03% FS
• Repeatability: 0.03% FS
• Input Resistance: 1000Ω
• Insulation Resistance: ≥5000MΩ
• Operating Temperature: -20°C to +85°C

Package Includes

1 × 50KG Half-Bridge Body Scale Load Cell Sensor (Strain Gauge)
