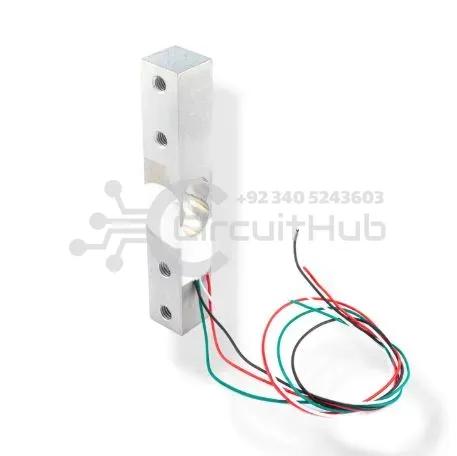

5Kg Scale Bar Load Cell Weight Sensor

This straight bar load cell (strain gauge) converts up to 5kg of applied pressure or force into an electrical signal. It measures changes in electrical resistance proportional to the load, making it ideal for weight detection, force measurement, and presence sensing applications.

Features

• Constructed from durable aluminum-alloy for long-lasting performance
• Capable of measuring forces up to 5kg
• Four strain gauges arranged in a Wheatstone bridge configuration for accurate readings
• Color-coded wiring for easy connection: red = E+, green = O+, black = E-, white = O-
• IP66 protection rating for dust and water resistance
• Two M4 and two M5 mounting holes for flexible installation

Specifications

• Sensing Range: 0–5 kg
• Operating Supply Voltage: 2.6 – 5.5V
• Operating Temperature: -40°C to +85°C
• Dimensions: 80 x 12.6 x 12.6 mm
• Interface: Analog
