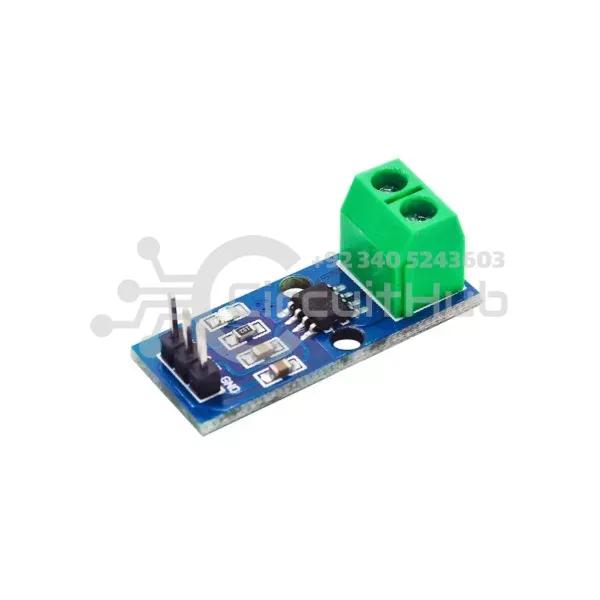

GuaranteedACS712 30A 30 Amp Current Sensor Module
The ACS712 Module uses the famous ACS712 IC to measure current using the Hall Effect principle. The module gets its name from the IC (ACS712) used in the module, so for your final products use the IC directly instead of the module.
PKR 300/-
Product Description
ACS712 Current Sensor Module is a high-performance current sensing device that measures both AC and DC current using the Hall Effect principle. Designed with the reliable ACS712 IC, this module is perfect for applications like motor monitoring, power supply measurement, battery management, and overcurrent protection. Available in 5A, 20A, and 30A versions, it ensures accurate measurements and electrical isolation from the load.
How to Use the ACS712 Module?
The ACS712 is easy to interface with microcontrollers such as Arduino, PIC, and Raspberry Pi. It comes with two secure green Phoenix terminal connectors for passing the measured wire. For example, to measure a motor’s current, simply connect the module in series with the load. Always handle connections carefully to prevent short circuits.
Pin Configuration
- Pin 1 (VCC): +5V input voltage
- Pin 2 (OUT): Analog voltage output proportional to current
- Pin 3 (GND): Ground connection
- T1 (Wire In): Connect the input wire to be measured
- T2 (Wire Out): Connect the output wire after measurement
What Makes This Special?
- Measures both AC and DC current
- Available in 5A, 20A, and 30A versions
- Provides complete electrical isolation from the load
- Outputs analog voltage for easy MCU integration
- Compact size and robust build for long-term use
Practical Scenarios
- Motor current monitoring
- Battery charging and management systems
- Solar power monitoring
- Overcurrent protection circuits
- Power supply measurement
Buy ACS712 Current Sensor Module online in Pakistan and enhance your electronics projects with precise and safe current measurement.
