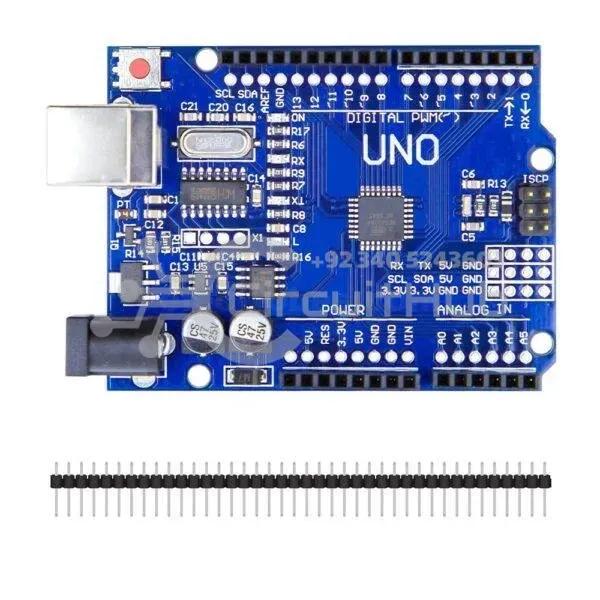

Arduino UNO R3 SMD Variant Improved Version
In StockAll over PakistanGuaranteedGuaranteed

Arduino UNO R3 SMD Variant Improved Version

The Arduino Uno R3 Compatible Board is a microcontroller board which is based on the ATmega328. Arduino Uno has 14 digital input or output pins (where 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It has everything needed to support the microcontroller, you need to simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

PKR 1050/-

1
CATEGORY:Development Boards & Kits, Modules & Breakout Boards

Product Description

Arduino UNO R3 SMD Variant Improved Version

  • Overview: The Arduino Uno SMD is a version of the Arduino Uno, but uses a surface mount version of the Atmega328P instead of the through-hole version. This version was made in response to a shortage in supply of the through-hole Atmega328P.
  • Features:
    • Easy application programming using open source IDE
    • Easy to learn Microcontroller using Arduino boards
    • Ready Library for most of the sensors and application modules
  • Details:
    • The board is based on the ATmega328 datasheet.
    • 14 digital input/output pins (of which 6 can be used as PWM outputs)
    • 6 analog inputs
    • 16 MHz crystal oscillator
    • USB connection
    • Power jack
    • ICSP header
    • Reset button
  • Compatibility: The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega8U2 programmed as a USB-to-serial converter.
  • Unique Features: This is the SMD version. This version has the ATmega chip surface mounted to the board, so the chip cannot be easily replaced, unlike the original where the chip can be easily pulled out and replaced. Performance will be the same as the original.

Package Includes: 1 x Arduino UNO R3 SMD Variant
