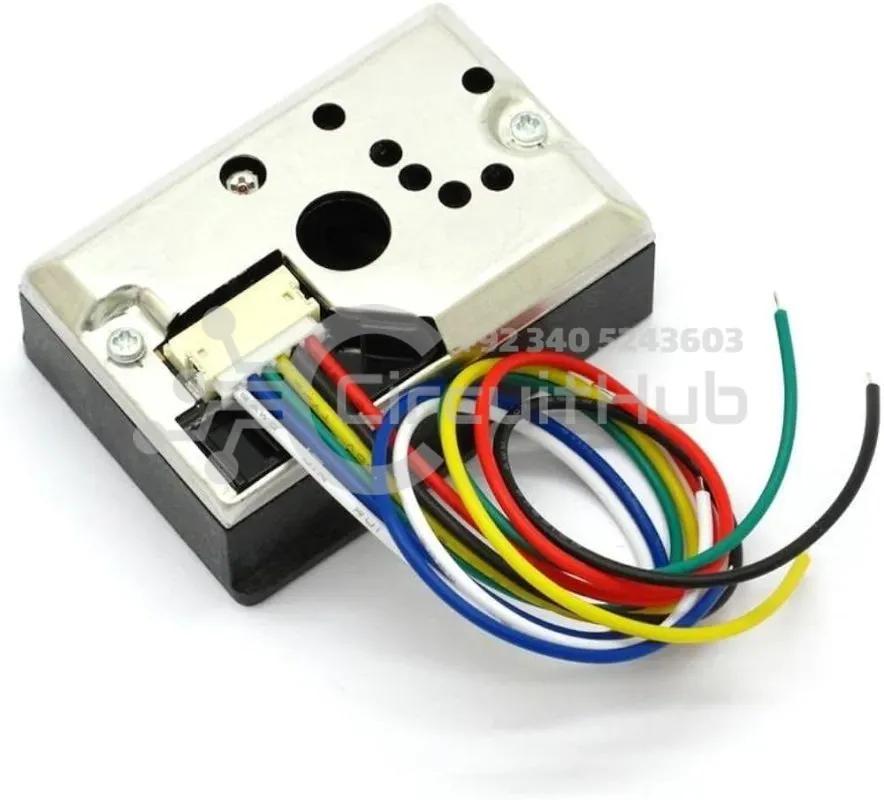

GP2Y1010AU0F Compact Optical Air Quality Dust Sensor

The WPSE346 / GP2Y1010AU0F dust sensor uses an optical sensing method and has a diagonally arranged infrared emitting diode (IRED) and phototransistor. It detects the reflected light of dust in air.

Features:

• Accurate dust detection: The GP2Y1010AU0F is a precise optical air quality sensor capable of detecting dust particles with a minimum size of 0.5 �m. This ensures that even the smallest dust particles do not go unnoticed.
• Wide range of dust density: This sensor can measure dust densities up to 580 �g/m�, which is ideal for monitoring air quality in various environments and applications.
• Versatile applications: This module is versatile and suitable for various applications, from automation, home automation and robotics to environmental and industrial monitoring.
• STEM project: Develop and improve your STEM skills and acquire the knowledge, skills and experience needed to face the technological challenges of the future with this educational kit. This educational kit will trigger a number of processes such as problem-solving, investigative and creative thinking.

Specifications

Technical data:

• Operating voltage: 4.5 to 5.5 VDC
• Operating current: max. 20 mA
• Light emitting element: LED
• Minimum detectable dust size: 0.5 um
• Dust density range: up to 580 ug/m�
• Sensing time: output interface: analog
• Output under zero dust conditions: 0 to 1.5 VDC
• Sensitivity: 0.5 (+/- 0.15 VDC) per 100 ug/m� change
• Accuracy: +/- 30 %

Operational properties:

• Instruction manual languages: English
• Coding skill level: none
• Electronics skill level: none
• Mechanics skill level: none
• Soldering skill level: none

Product basic info:

• Colour unit: White
• Additional colour: Black
• Depth unit: 3.5 cm
• Height unit: 15.5 cm
• Weight unit: 44 g
• Width unit: 7.5 cm
