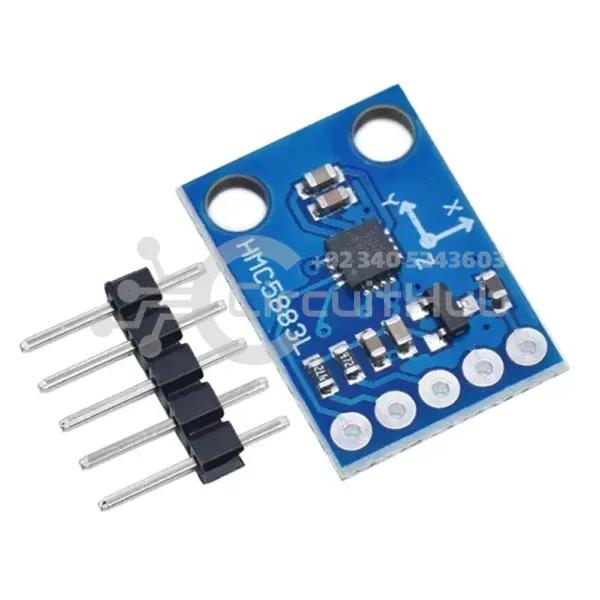

GY-273 HMC5883L Triple Axis Compass Magnetometer Sensor Module

Name: GY-273 HMC5883L Triple Axis Compass Magnetometer Sensor Module
Price: 500 PKR
Availability: InStock

The HMC5883L is a small 3-axis magnetometer (compass) module that uses the I2C protocol for communication. It has a built-in voltage regulator, so you can power it with 3.3V to 6V. This makes it easy to use in projects like navigation, robotics, and direction sensing. Buy the HMC5883L module online in Pakistan.

PKR 500/-

CATEGORY:Modules & Breakout Boards

Product Description

The HMC5883L Triple-Axis Magnetometer Compass Module is a 3-axis digital compass that communicates via the I2C protocol. It comes with a built-in voltage regulator, so it can be powered with voltages between 3.3V and 6V. Compact, reliable, and easy to use, this module is ideal for navigation, robotics, and DIY electronics projects.

Features & Specifications:

Operating Voltage: 3V – 6V DC
Communication Interface: I2C
Heading Accuracy: 1–2 degrees
Integrated: 12-bit ADC
Maximum Data Rate: 160Hz
Measurement Range: -8 to +8 Gauss
No external components required
Easy to interface with Arduino, microcontrollers, and digital/analog ICs
Compact size, affordable, and widely available

HMC5883L Pinout Configuration:

VCC: Powers the module (typically +5V)
GND: Ground connection
SCL: Serial Clock pin – connect to the microcontroller’s SCL pin
SDA: Serial Data pin – connect to the microcontroller’s SDA pin
DRDY: Data Ready output pin – indicates when new data is available

Interfacing HMC5883L with Arduino:

You can easily connect the HMC5883L 3-axis compass module to an Arduino Uno using the I2C pins. Once connected, it provides accurate direction and orientation data for navigation and robotics projects.
