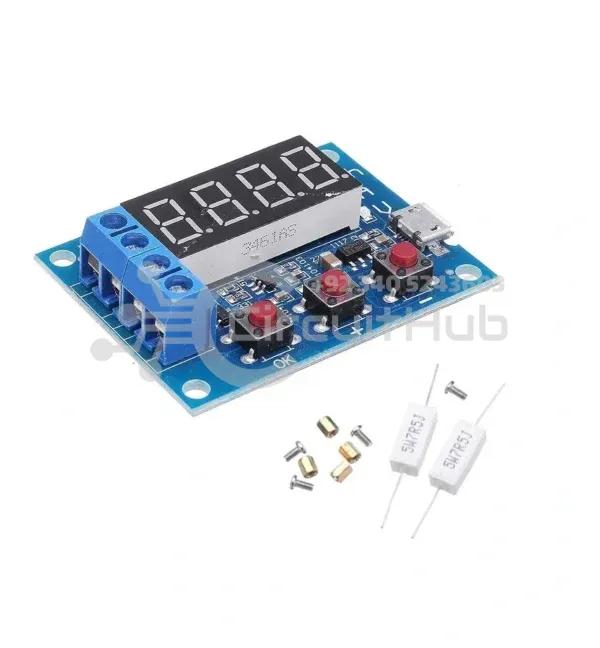

HW-586 Battery Capacity Tester Module For 18650 Battery

Power supply voltage: DC4.5-6V (micro USB connector)

ZB2L3 HW-586 Battery Capacity Tester

• Operating Current: less than 70mA
• Discharge voltage: 1.00V-15.00V 0.01V resolution
• Termination voltage range: 0.5-11.0V
• Support by current: 3.000A 0.001A resolution
• Voltage measurement error: 1% + 0.02V

Board size: 50mmX37mm

Material: Electrical components

Color: See pictures

Current measurement error: 1.5% + - 0.008A

Features:

• Battery capacity range: 9999Ah (1Ah = 1000mAh) greater value by shifting the decimal point to switch, when the display is less than 10Ah X.XXX, as shown above to achieve 10Ah XX.XX, and so on.
• ZB2L3 battery capacity tester discharge type 1.2-12V external load capacity of the battery and other tests 18650
• Tools, single-function, by controlling the load off and get real-time integrated discharge current capacity results
• Maximum support 15V 3A discharged through the discharge voltage and current, itself does not discharge
• Maximum capacity statistics support 9999Ah (9999000mAh)
• Automatically identify and develop appropriate battery termination voltage can also be manually adjust

Instructions:

1. The first test should be fully charged battery.
2. Connect the battery to be tested positive to positive input, a negative input to the negative, can not be revers (with load reversal may damage the circuit)!
3. Load connect to the output of the positive and negative output, to work through the tester micro USB power supply , then the battery voltage.
4. Direct start test need only one press of the “OK” button, the tester can automatically develop an appropriate termination voltage of the battery full charge voltage, and will start flashing after the test three times. Need to develop artificial termination voltage only when the battery voltage display state by pressing “+” or “-” buttons to modify the termination voltage display beginning with P, behind the representative voltage resolution 0.1V, set up after pressing the “OK “start testing.

Package Includes:

• 1 x HW-586 Battery Capacity Tester
• 2 x Shunt Resistors
