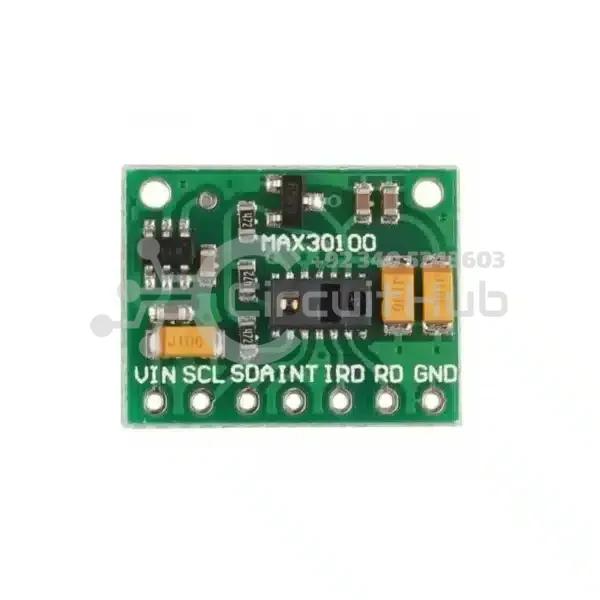

MAX30100 Heart Rate Oxygen Pulse Breakout Sensor Module For Arduino

The MAX30100 provides a complete system solution to ease the design-in process for mobile and wearable devices. The MAX30100 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

Features:

• Optical Heart-Rate Monitor and Pulse Oximetry Solution
• Tiny 12.7mm x 12.7mm (0.5in x 0.5in) Board Size
• Low Power
• Device Drivers
• Free Algorithm
• Example C Source Code For Arduino And m-bed Platforms
• Test Data
• Competitive Advantages

Highly-integrated, small-size sensor

• Non-chest based heart-rate/SpO2 detection
• Ultra-low power consumption

Note: The color of item might be slightly different from the picture shown, which mainly lies in different light effect and computer monitor.

Package includes:

• 1 x Low Power MAX30100 Heart Rate Oxygen Pulse Sensor

Heart-Rate Monitor and Pulse Oximeter Sensor in LED Reflective Solution
Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module
Integrated Cover Glass for Optimal, Robust Performance
Ultra-Low Power Operation for Mobile Devices
Programmable Sample Rate and LED Current for Power Savings
Low-Power Heart-Rate Monitor (< 1mW)
Ultra-Low Shutdown Current (0.7�A, typ)
Fast Data Output Capability
High Sample Rates
Robust Motion Artifact Resilience
High SNR
-40�C to +85�C Operating Temperature Range
