Multi-function Mini DC-DC Boost Step Up Volt Converter 12V Power Supply Module

Multi-function Mini DC-DC Boost Step Up Volt Converter 12V Power Supply Module

Features:

• 100% brand new and high quality

Basic Parameters:

• The output voltage can be set to 5v/ 8v/ 9v/ 12V, the default is 12V.
• Input voltage range: 2.5V-5V OUT. The input voltage must be lower than the set output voltage.
• Output capability:
• When input 3.7V lithium battery, it can output 12V 0.3A.
• When inputting at 5V, it can output 12V 0.5A.
• When the default 12V output, the LED indicator consumes about 1mA. If the indicator is turned off, the input current is 1mA at no load.

Voltage Setting Description:

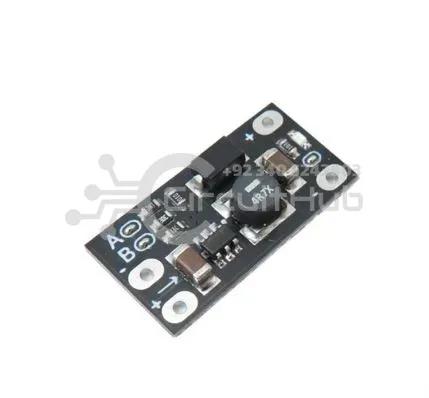

The front side of the PCB can be seen with the words A and B. Use the soldering iron to change the pad pass next to the character. The output voltage can be changed by breaking. In the following table, 0 indicates that the pad is disconnected, and 1 indicates that the pad is connected. The pad next to the LED indicator can also be turned off to turn off the indicator.

Specification:

• Color: As pictures shown.
• Size: app. 22x11mm(0.87�0.43in)
• Material: Electronic component
• Quantity: 1 pc

Note: Transition: 1cm=10mm=0.39inch With retail package. Please allow 1-3cm error due to manual measurement. pls make sure you do not mind before you bid. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes: 1 x Boost Module(other accessories demo in the picture is not included.) Input voltage: DC 2.5V-Vout Fixed Output voltage: 12V
