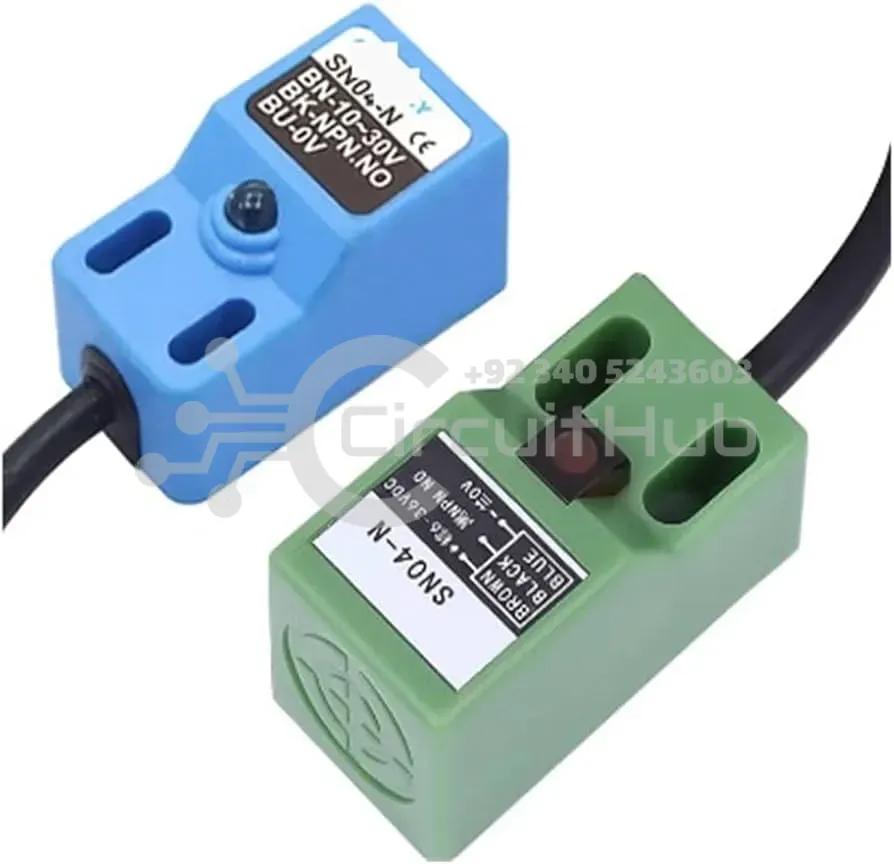

Proximity Switch SN04-N NPN Metal Detection Sensor for Metal Inspection

The SN04-N Inductive Proximity Sensor is designed to detect metallic objects within a 5mm range. Detection may vary slightly depending on the type, size, and shape of the metal. This sensor can also sense through thin, non-metallic materials. It includes a built-in LED indicator that lights up when powered and gets brighter when a metallic object is detected.

Key Features:

• Model: SN04-N NPN NO 3-Wire DC Inductive Proximity Sensor
• Cable Length: ~65 cm
• Dimensions: 18 × 18 × 36 mm
• Detection Distance: 5 mm (typical) / 4 mm (rated)
• Hysteresis: ≤10% of sensing distance
• Protection (DC): Reverse connection protection, surge suppressor, short-circuit protection
• Protection (AC): Surge suppressor
• Insulation Resistance: ≥50 MΩ (between charging part and housing)
• Dielectric Strength: 1000 Vac, 1 min (between charging part and housing)
• Temperature Influence 1: ±10% at 23°C (−25°C to 60°C)
• Temperature Influence 2: ±15% at 23°C (−30°C to 65°C)
• Voltage Influence: ±10% in rated voltage range ±15%
• IP Rating: IP67 (dustproof & waterproof)
• Type: 3-Wire
• Supply Voltage: DC 10–30V
• Rated Output Current: 300 mA max
• Leakage Current: ≤13 mA
• Polarity: NPN, Normally Open
• Response Frequency: 0.6 kHz

Why Choose This Sensor?

• Accurate detection of metallic objects up to 5mm
• Works through thin non-metallic surfaces
• LED indicator for easy operation monitoring
• Durable & waterproof (IP67) for industrial use
• Built-in reverse polarity & surge protection
