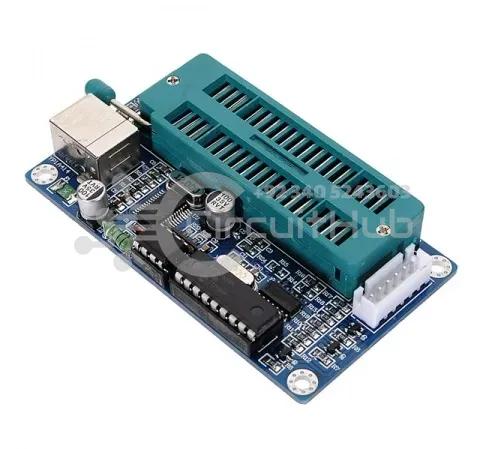

PIC K150 USB Development Board Microcontroller Programmer With ICSP Cable

K150 is a low-cost high-performance PIC programmer, supporting the most popular PIC chips. This device is obsolete and not compatible with MPLab X (new PIC development tool), so you will have to export files in HEX format from MPLab X and import to DIY application which has released last version in 2007. For small projects this device is fine but for more advanced development is recommended usage of PICKit 3.

Features:

• PIC USB Automatic Programming Develop Microcontroller Programmer K150 ICSP
• Support the most popular programming PIC chips, read, encryption and other features
• No external power supply, communication and power is only a USB cable to print complete, without any cable
• PIC START PLUS much faster rate than programming
• Can easily read the contents of the chip program area
• Automatic programming verification
• Comprehensive information prompts, allowing users to understand the working state

Additional Information:

• Compatible with Windows 98 and Windows 2000/NT, Windows XP / Windows 7 and other operating systems

Pinout Information for ICSP (pin 1 count from middle to pin 6 at the edge):

• Pin 1 ~ Vpp (MCLR/ Reset)
• Pin 2 ~ Vcc (5 Volt DC)
• Pin 3 ~ Gnd (Ground)
• Pin 4 ~ Data
• Pin 5 ~ Clock (CLK)
• Pin 6 ~ PGM (LVP)

Support Chip List:

• 12F Series: PIC12F508, PIC12F509, PIC12F629, PIC12F635, PIC12F675, PIC12F683
• 16F Series: PIC16F505, PIC16F506, PIC16F54, PIC16F57, PIC16F59, PIC16F627, PIC16LF627A, PIC16F627A, PIC16F628, PIC16LF628A, PIC16F628A, PIC16F630, PIC16F631, PIC16F631-1, PIC16F636, PIC16F636-1, PIC16F639, PIC16F639-1, PIC16F648A, PIC16F676, PIC16F677, PIC16F677-1, PIC16F684, PIC16F685, PIC16F685-1, PIC16F687, PIC16F687-1, PIC16F688, PIC16F689, PIC16F689-1, PIC16F690, PIC16F690-1, PIC16F716, PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F737, PIC16F747, PIC16F767, PIC16F777, PIC16F83, PIC16F84, PIC16F84A, PIC16F87, PIC16F88, PIC16F818, PIC16F819, PIC16F870, PIC16F871, PIC16F872, PIC16F873, PIC16F873A, PIC16LF873A, PIC16F874, PIC16F874A, PIC16F876, PIC16F876A, PIC16F877, PIC16F877A
• 18 Series: PIC18F242, PIC18F248, PIC18F252, PIC18F258, PIC18F442, PIC18F448, PIC18F452, PIC18F458, PIC18F1220, PIC18F1320, PIC18F2220, PIC18F2320, PIC18F2321, PIC18F4210, PIC18F2331, PIC18F2450, PIC18F2455, PIC18F2480, PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2525, PIC18F2550, PIC18F2580, PIC18F2585, PIC18F2610, PIC18F2620, PIC18F2680, PIC18F4220, PIC18F4320, PIC18F6525, PIC18F6621, PIC18F8525, PIC18F8621, PIC18F2331, PIC18F2431, PIC18F4331, PIC18F4431, PIC18F2455, PIC18F2550, PIC18F4455, PIC18F4550, PIC18F4580, PIC18F2580, PIC18F2420, PIC18F2520, PIC18F2620, PIC18F6520, PIC18F6620, PIC18F6720, PIC18F6585, PIC18F6680, PIC18F8585, PIC18F8680
• *via ICSP only.

Model Number:

PIC K150

Operating Temperature:

-40+85℃

Application:

Computer

Condition:

New

Type:

Module

Material:

PC+Metal

Colour:

Green
