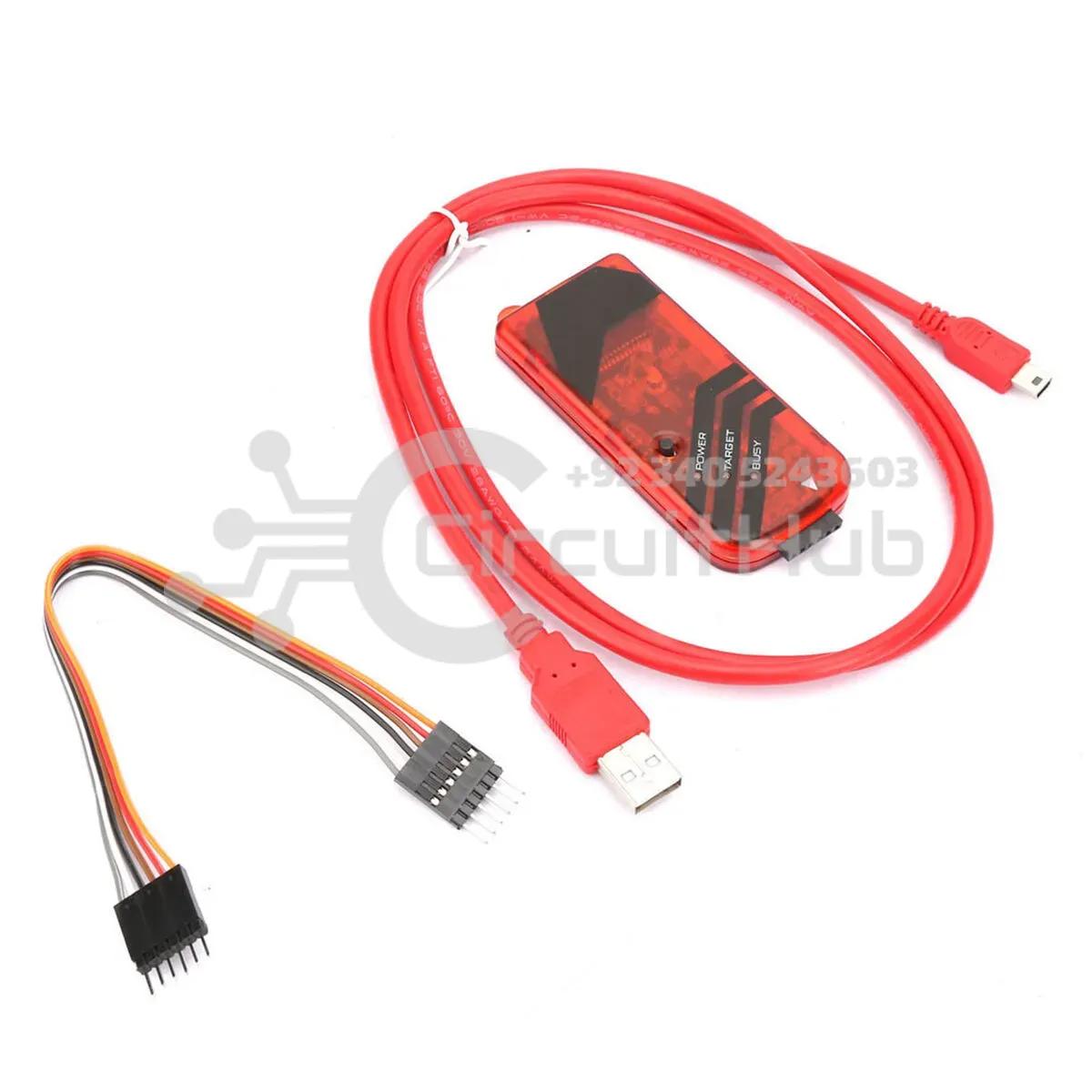

PICkit3 PIC KIT3 Debugger Programmer Emulator PIC Controller Development Board

Used to program and debug PIC microcontrollers

Easy to interface with PC via USB cable
Supports windows standard drivers
Has programmer to go feature where you can program without PC
Built-in Over Voltage and Short circuit Monitor
On-board diagnostic LED’s
Supports all latest version of PIC and IDE’s

PKR 6500/-

CATEGORY:Modules & Breakout Boards, Microcontrollers & Programmers

Product Description

Microchip’s PICkit3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer.

Features:

Full-speed USB support using Windows standard drivers
Real-time execution
Processors run at maximum speeds
MPLAB IDE compatible (free copy included)
Built-in over-voltage/short circuit monitor
Firmware upgradeable from PC/web download
Totally enclosed
Supports low voltage to 5 volts (1.8v to 5.0v range)
Diagnostic LEDs (power, active, status)
Read/write program and data memory of microcontroller
Erase of all memory types (EEPROM, ID, configuration and program) with verification
Freeze-peripherals at breakpoint
Program up to 512K byte flash with the Programmer-to-Go

Applications:

Program PIC Microcontrollers
Debug PIC Microcontrollers
Code dumping in production process
Flashing or Firmware update

Package Includes:

1 x PICKIT 3 In-Circuit Debugger Programmer Module
1 x Mini USB Cable
1 x 6 pin cable
