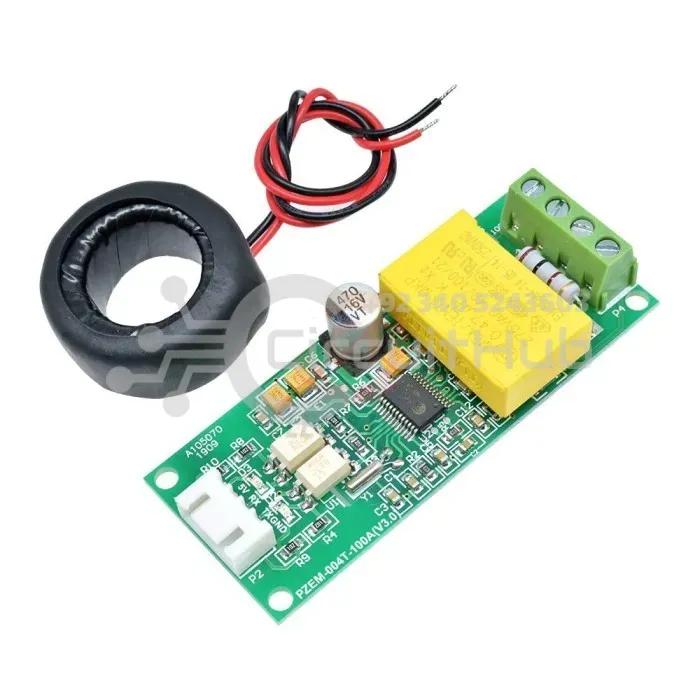

PZEM-004T Current Voltage Multimeter Module AC 80-260V 100A with Current Transformer

The PZEM-004T AC Current Voltage Multimeter Module is a versatile single-phase energy meter for measuring voltage, current, power, and total energy consumption. Designed for indoor use, it includes a current transformer and supports UART serial communication, making it ideal for DIY energy monitoring, home automation, and electronics projects. Compatible with LCD or LED displays for easy visualization.

Key Features

• Measures electricity consumption accurately
• Serial UART interface at 9600 baud rate
• Supports connection to LCD or LED displays
• Power, voltage, current, and load monitoring
• Power-down data storage and cumulative energy tracking

Package Includes

• 1 x PZEM-004T Multimeter Module (USB adapter not included)
• 1 x Current Transformer (random color)

Specifications

• Voltage Measurement Range: 80 ~ 260 VAC
• Current Measurement Range: 0 ~ 100A
• Power Measurement Range: 0 ~ 22 kW
• Energy Measurement Range: 0 ~ 9999 kWh
• Operating: Indoor only

Functions

• Electrical parameter monitoring: voltage, current, power, and total consumption
• Clear function for electricity readings via built-in button
• Power-down data retention
• Serial communication for reading and setting parameters via TTL interface

Button Operation

• Press the ZERO key for 5 seconds to clear electricity readings
• Press again to exit and complete the reset process

Serial Communication

• TTL serial interface for direct module communication
• For USB or RS232 devices, use a TTL-to-USB or TTL-to-RS232 adapter board
• Supports reading and setting all module parameters

Considerations

• Indoor use only, not suitable for outdoor environments
• Applied load must not exceed the rated power
• Ensure correct wiring to avoid damage

Buy the PZEM-004T AC Power Monitor Module online in Pakistan for reliable energy measurement and monitoring in your electronics projects.
