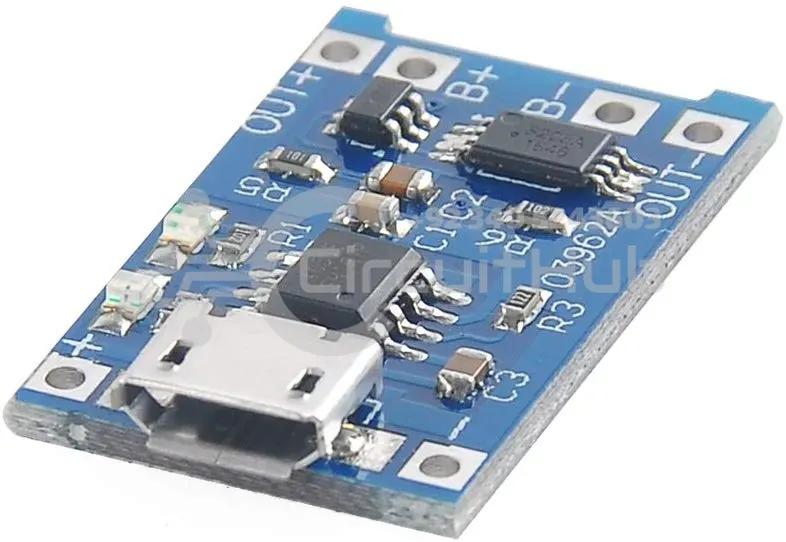

TP4056 5V Micro USB 1A 18650 Lithium Battery Charging Board Charger Module

The TP4056 module is a compact, efficient, and reliable lithium battery charger module designed for safe and precise charging of Li-ion and LiPo batteries. Built around the original TP4056 charging IC and the DW01 Deep Drain Battery Protection IC, it provides up to 1A charging current while ensuring protection against over-discharge, over-voltage, and reverse polarity. Ideal for DIY electronics, battery-powered projects, and portable devices, this module guarantees safe and efficient battery management.

Features of TP4056 Module

• Under-voltage cut-off / Deep drain battery protection
• Over-current protection for safe charging
• Adjustable charging current via R-Prog resistor
• Over-voltage protection to prevent battery damage
• Micro USB connector for easy and standard charging
• LED status indicators: Red = Charging, Green = Fully Charged

Specifications of TP4056 Module

• Input Voltage: 5V DC
• Load Cut-off Voltage: 4.2V ± 1%
• Maximum Charging Current: 1000mA
• Excessive Battery Discharge Protection Voltage: 2.5V
• Battery Overcurrent Protection: 3A
• Compact Panel Size: 17.16 mm x 26.17 mm
• Charging Accuracy: ±1.5%
• Input Interface: Micro USB & Welding Points
• Operating Temperature: -10°C to +85°C
• Reverse Polarity Protection: No
• Module Dimensions: 25 x 19 x 10 mm
• Compatible with all Li-ion & LiPo batteries, including 18650 cells

Connection Instructions

• Connect the battery to B+ and B- terminals
• Connect the battery load to OUT+ and OUT– for uninterrupted power supply

Applications

• DIY electronics projects and prototypes
• Portable battery-powered devices
• Arduino and Raspberry Pi battery projects
• 18650 and LiPo battery charging circuits
• LED modules and small robotics projects

Why Choose TP4056 Module?

The TP4056 charging module is a reliable and compact solution for safe lithium battery management. Its protection features, adjustable charging current, and easy USB interface make it ideal for both beginners and professionals. Order now from CircuitHub Pakistan for high-quality electronic components and power your projects safely and efficiently!
