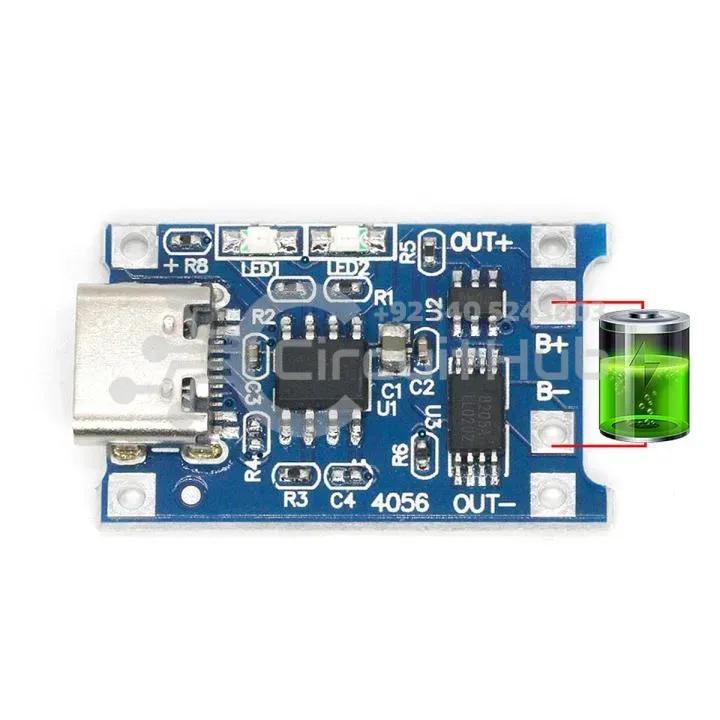

TP4056 C Type USB Port 1A 18650 Lithium Battery Charging Board Charger Module
In StockAll over PakistanGuaranteedGuaranteed

TP4056 C Type USB Port 1A 18650 Lithium Battery Charging Board Charger Module

This tiny module is perfect for charging single cell 3.7V 1 Ah or higher LiPo cells such as 16550s that do not have their protection circuit.

  • 1A charge current
  • Cuts off charging current when finished

PKR 60/-

1
CATEGORY:Modules & Breakout Boards

Product Description

This module is based around the TP4056 charger IC and DW01 Deep Drain Battery Protection IC, offering 1A charge current. It provides various protections and features:

  • Under Voltage Cut off / Deep Drain Protection
  • Over Current Protection
  • Adjustable Current Limit through R-Prog
  • Over-voltage charging protection
  • USB Type-C Connector (compatible with more commonly available USB cables)
  • LED Status Indicator for Charging / Full charge status monitoring

Specifications:

  • Input voltage: 5V
  • Load cut-off voltage: 4.2V ± 1%
  • Maximum charging current: 1000mA
  • Excessive battery discharge protection voltage: 2.5V
  • Battery overcurrent protection current: 3A
  • Panel size: 17.16 mm x 26.17 mm
  • Charge precision: 1.5%
  • Led indicator: red is charging Green is full charged
  • Input interface: Type-C
  • Work temperature: -10° to +85°
  • Reverse polarity protection: No
  • Size: 25X19X10mm
  • Works with all types of LiPo & lithium batteries like 18650

Connection instructions:

  • Connect Battery with B+ & B-
  • Connect Battery load OUT+ & OUT – (this is uninterrupted power supply)
