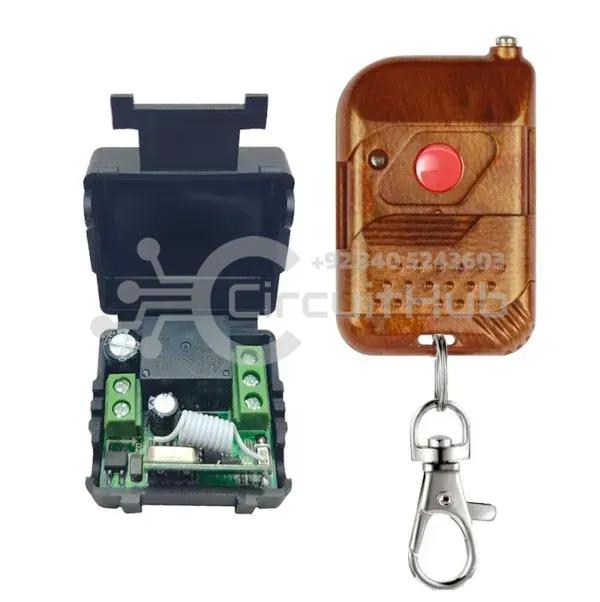

1 Channel Wireless Smart Remote Control Relay Switch 12V DC 10A 315MHZ Transmitter And Receiver Set

Features:

• Three output modes for the choice.
• Safe and flexible to operate and install.
• Wide use in the house, shopping center, electric motor, cars, motorcycle anti-theft alarm system or other control systems.

Output Operation:

• Jog / Unlocked: press a button, works / loosens and release your finger on the same button is stop / off. (A channel change needs a key on the remote control)
• Auto lock: Press a button for a time works / up and press the same button is stop / off. (A channel change needs a button on the remote control)
• Interlock / locked: Press one button works / up and another button press / off stop. (A channel change requires 2 buttons on the remote control)

Learning and procedures for removing:

• Learning method: Press the learning code for 3 seconds. The indicator will then flash, and then loosen the finger, press any key to transmit the remote signal, the indicator will flash 3 times and then usually that means you will learn it successfully.
• Remove / clean method: The learn button will press approximately 8 seconds, the display will be from being away all the time, it means to keep the information you have successfully removed

Wiring diagram:

• +V : 12V + input ;
• – V: 12V – input ;
• NO: Output , normal open;
• COM: Output , common ;
• NC: Output , normal close.

Input Power: DC10V-14V

Standby Current: 97dbm

Transmitting distance: >100m (open space)

Decoding mode: MCU software decoding

Support remote type: Learning code, Fixed code (Rolling code can be design)

Working mode: Momentary, Toggle, Latching

Time delay (5s, 10s, 15s)

Wiring type: fixed terminal

Output Terminal: NO, NC, COM

Dimension of PCB: 35*30*18mm (L,W,H)
