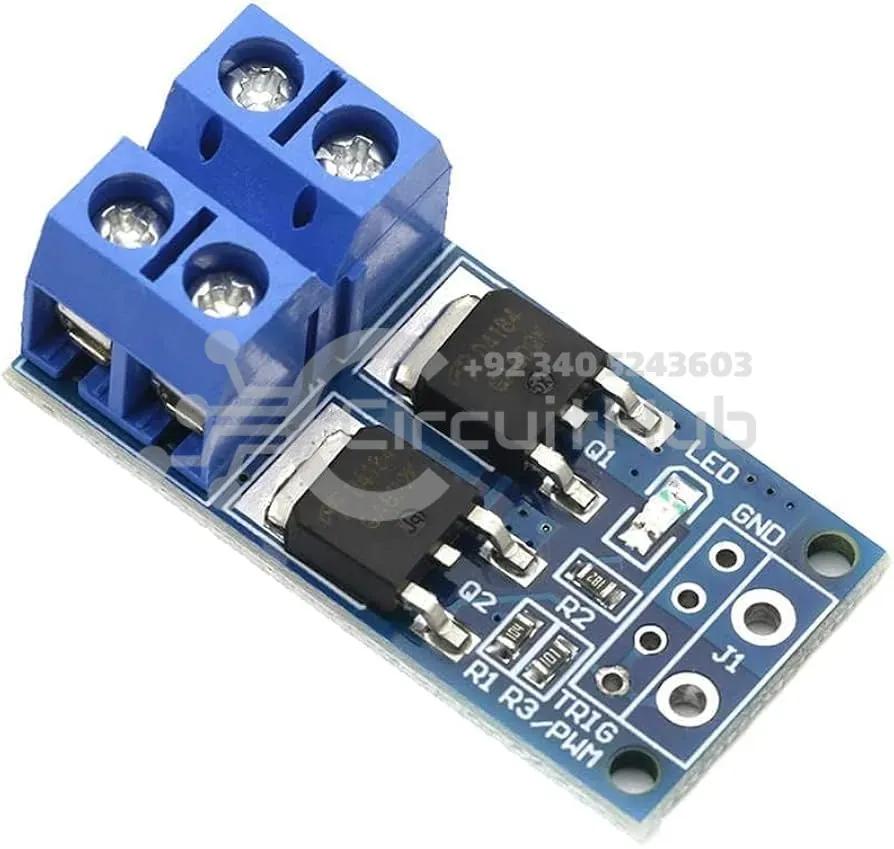

15A 400W MOSFET Trigger Switch Driver Module

MOSFET Trigger Switch Drive Module – High-power MOSFET control board with field-effect tube for precise electronic switching. Designed for reliable operation, this module features dual MOS parallel active output, offering lower internal resistance, higher current handling, and efficient power management. It can handle up to 15A and 400W under normal conditions, making it suitable for controlling high-power devices effortlessly. Perfect for PWM-controlled applications, it can manage electric motors, LED light strips, light bulbs, micro-pumps, and solenoid valves with ease.

Key Features:

• High-power MOSFET field-effect tube driver for PWM signal control
• Imported dual-MOS transistor parallel output for lower resistance and higher current
• Supports PWM frequency from 0–20kHz for precise speed and brightness control
• Compact and efficient design for high-power device management

Specifications:

• Operating Voltage: DC 5V – 36V
• Trigger Source: Digital high-low (DC 3.3V – 20V), compatible with microcontroller IO, PLC, and PWM input
• Output Capacity: 15A continuous, 400W at room temperature (max 30A with auxiliary cooling)
• Dimensions: 34mm x 17mm x 12mm
• Operating Temperature: -40°C to 85°C

Applications:

• Control high-power devices like motors, light bulbs, LED strips, micro-pumps, and solenoid valves
• PWM-based motor speed control and lamp brightness adjustment
• Industrial automation, robotics, and DIY electronics projects

Package Includes:

• 1 x 15A 400W MOSFET Trigger Switch Drive Module (DC 5V – 36V)
